Ferrofix upper section gl. flange

Sys200, slot grat, 304SST, 200 x 200 mm

57410-KF
PDF product data sheet

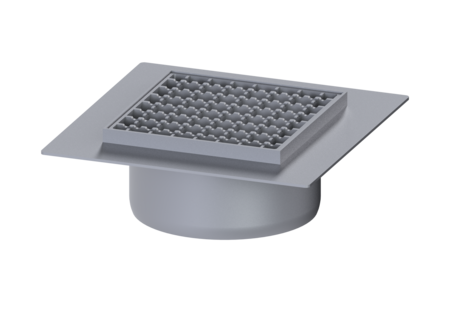

KESSEL Ferrofix upper section gl. flange, height 110 mm, length 200 mm, width 200 mm, type of cover Slotted cover, locking unlocked, design cover

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 57410-KF
GTIN 4026092093283
Price group 70

    Ferrofix upper section gl. flange Sys200, slot grat, 304SST, 200 x 200 mm
    Used in combination with a drain body of the KESSEL modular system 200, the Ferrofix stainless steel upper section with glued flange is suitable for indoor point drainage. Variant System: 200 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 3,11 kg Gross weight: 3,62 kg Type of height adjustability: vertically adjustable upper section Length: 300 mm Width: 300 mm Height: 110 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
