Drain body Ferrofix, one-p, GF6
DN100, vert., 230x230, grated cover L15
KESSEL Drain body Ferrofix, one-p, GF6 DN100, vert., 230x230, grated cover L15, System 185, surface, length 230 mm, width 230 mm, type of cover Slotted cover, locking
- Made of particularly hygienic and mechanically highly resistant stainless steel
| Item no. | 55149 |
|---|---|
| GTIN | 4026092107744 |
| Price group | 70 |
Drain body Ferrofix, one-p, GF6 DN100, vert., 230x230, grated cover L15

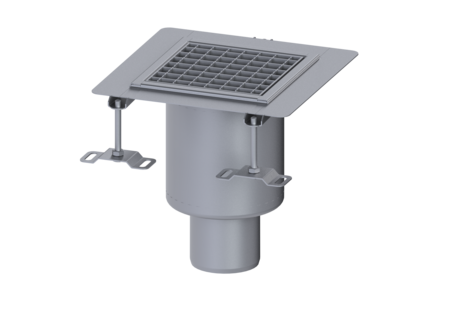

The one-piece Ferrofix System 185 stainless steel floor drain is used for point drainage and is equipped with a removable odour trap, sludge bucket and grated cover. The floor drain is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim (6 mm deep and 50 mm folded outwards). The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Contents of sludge trap: yes Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2,5 Outlet: vertical General characteristics Material: Stainless steel 14301 Outlet: vertical Glued flange height: 6 mm Odour trap: included Dimensions Length: 230 mm Width: 230 mm Height: 320 mm Tank/drain body Number of outlets: 1 Outlet nominal size (DN): 100 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Contents of sludge trap: yes Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Material (material):
Stainless steel 14301
- Cover material (abdeckung_material):
Stainless steel 14301
- Length (laenge): 230 mm
- Width (breite): 230 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Surface (oberflaeche):
