Drain body Ferrofix, one-p, GF15

DN 100, vert., 206x206, grated cover L15

55147
55147
PDF product data sheet

KESSEL Drain body Ferrofix, one-p, GF15 DN 100, vert., 206x206, grated cover L15, System 185, surface, type of cover Slotted cover, locking, design cover, Cover Stainless steel 14301

  • Made of particularly hygienic and mechanically highly resistant stainless steel
Item no. 55147
GTIN 4026092107720
Price group 70

    Drain body Ferrofix, one-p, GF15 DN 100, vert., 206x206, grated cover L15

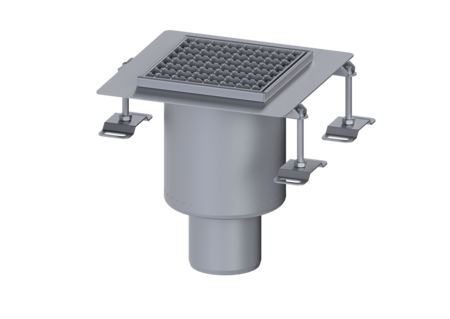

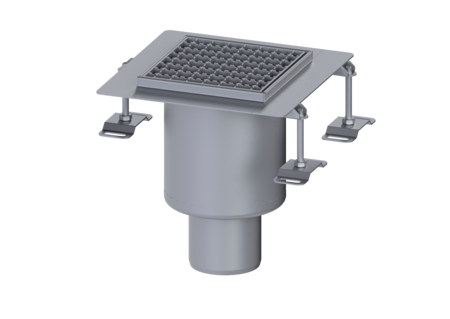

    The one-piece Ferrofix System 185 stainless steel floor drain is used for point drainage and is equipped with a removable odour trap, sludge bucket and grated cover. The floor drain is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim (15 mm deep and 50 mm folded outwards). The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Contents of sludge trap: yes Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2,5 Outlet: vertical General characteristics Material: Stainless steel 14301 Outlet: vertical Glued flange height: 15 mm Odour trap: included Dimensions Length: 206 mm Width: 206 mm Height: 320 mm Tank/drain body Number of outlets: 1 Outlet nominal size (DN): 100 mm Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Contents of sludge trap: yes Cover Grating material: 304 stainless steel
      Title Item no.
      Title Item no.
      Title Item no.
    55160 Odour trap Seal. water height 70 mm,vert,304 st.st. 55160 Show
    55161 Odour trap Sealing water height 50 mm,vertical, PP 55161 Show
      Title Item no.
    • Material (material): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): vertical
    • Length (laenge): 206  mm
    • Width (breite): 206  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Surface (oberflaeche):
