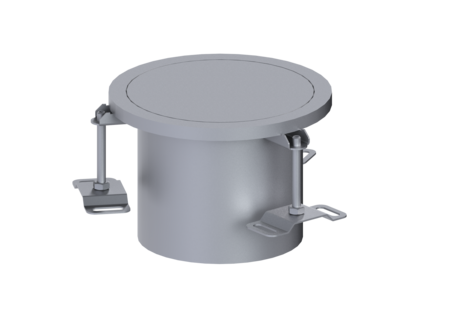

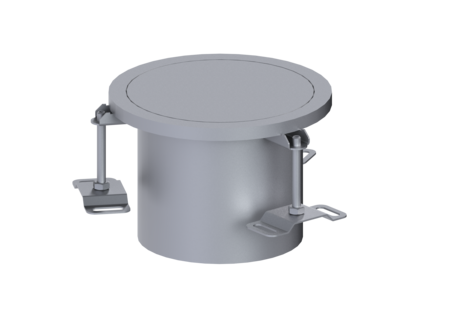

Ferrofix cleanout
Hygiene, gas-tight, round, 250x250mm
KESSEL Ferrofix cleanout, load class L 15, waterproofing layer upper section by, length 250 mm, type of cover Hygiene upper section, locking unlocked
- Made of a particularly hygienic and mechanically highly resistant stainless steel
| Item no. | 55143 |
|---|---|
| GTIN | 4026092107683 |
| Price group | 70 |
Ferrofix cleanout Hygiene, gas-tight, round, 250x250mm
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 185 General characteristics Standard: EN 1253-1 Dimensions Length: 250 mm Width: 250 mm Height: 200 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 20 mm Locking: unlocked Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Grating material: 304 stainless steel Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Hygiene upper section
- Length (laenge): 250 mm
- Width (breite): 250 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): unlocked
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
