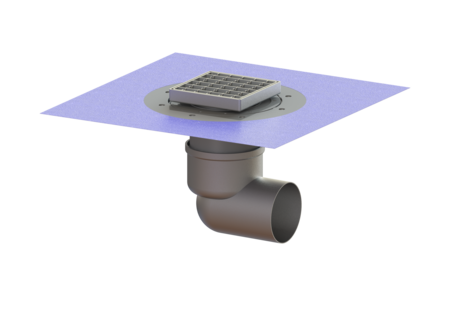

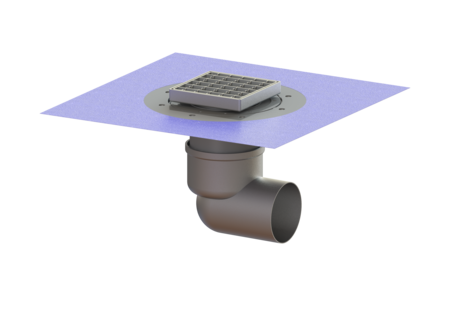

Ferrofix floor/roof drain
DN100, horiz, Waterpr layer, slot grat.
KESSEL Ferrofix floor/roof drain, System 125, nominal size (DN) 100, type of cover Slotted cover, cover length 138 mm, socket lateral, adjustable in three dimensions, outside diameter (OD) 110 mm, volume 66,7 dm³
- Made of particularly hygienic and mechanically highly resistant stainless steel
- High flow rate
| Item no. | 54420.21 |
|---|---|
| GTIN | 4026092056370 |
| Price group | 70 |
Ferrofix floor/roof drain DN100, horiz, Waterpr layer, slot grat.
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 23 - 40 mm Net weight: 3,1 kg Gross weight: 3,86 kg Type of height adjustability: vertically adjustable upper section Length: 196 mm Width: 142 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Surface: pickled Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
 | Extension section System 125, with pressure sealing flange | 54187 | Show |
 | Extension section System 125, side inlet DN 50/40 | 54189 | Show |
 | Extension section System 125, 304 stainless steel | 54900 | Show |
 | Extension section System 125, with glued flange | 54901 | Show |
 | Extension section System 125, Side inlet DN 50 | 54902 | Show |
 | Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
