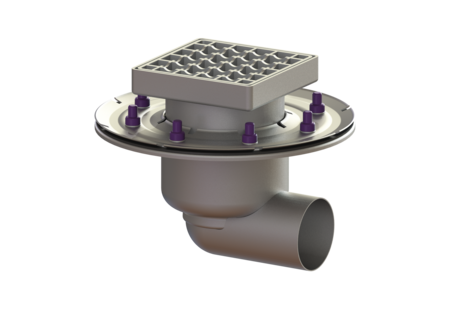

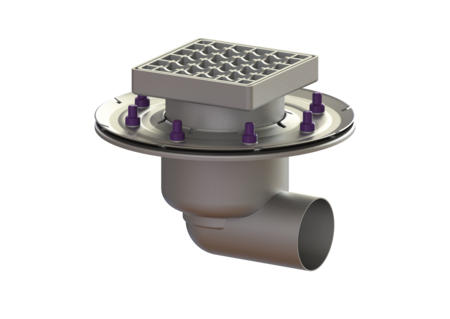

Ferrofix floor drain press, fl.
DN70, horiz., slot grat., St.steel
![](https://assets.kessel.de/pb/640/pb_wgablau_5420020_5864.png)
![](https://assets.kessel.de/mz/w640/mz_5420020_218708.png)
KESSEL Ferrofix floor drain press, fl., nominal size (DN) 70, System 125, socket lateral, upper section material Stainless steel 14301, vertically adjustable, type of cover Slotted cover, outside diameter (OD) 78 mm
- Made of particularly hygienic and mechanically highly resistant stainless steel
- High flow rate
Item no. | 54200.20 |
---|---|
GTIN | 4026092056486 |
Price group | 70 |
Ferrofix floor drain press, fl. DN70, horiz., slot grat., St.steel
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only membranes tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm ATEX: no Odour trap: included Dimensions Net weight: 4,45 kg Gross weight: 5,06 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 386 mm Packaging dimension: width: 286 mm Packaging dimension: height: 300 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Surface: pickled Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
![]() | Extension section System 125, with pressure sealing flange | 54187 | Show |
![]() | Extension section System 125, side inlet DN 50/40 | 54189 | Show |
![]() | Extension section System 125, 304 stainless steel | 54900 | Show |
![]() | Extension section System 125, with glued flange | 54901 | Show |
![]() | Extension section System 125, Side inlet DN 50 | 54902 | Show |
![]() | Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
