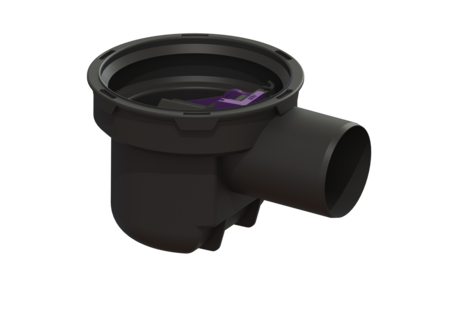

Drain body
for light liq trap, w/o backwater valve
KESSEL Drain body, nominal size (DN) 100, odour trap included, length 320 mm
| Item no. | 51102 |
|---|---|
| GTIN | 4026092085172 |
| Price group | 10 |
Drain body for light liq trap, w/o backwater valve
Le corps de base en composite est équipé d’un dispositif anti-odeur amovible et d’un panier à boue. Densité du fuel : 0,865 g/cm3 Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 1 General characteristics Standard: EN 1253-5 Nominal size (DN): 100 Outer diameter (OD): 110 mm Backwater protection: without Odour trap: included Dimensions Vertical adjustment: 30 - 90 mm Net weight: 2,1 kg Gross weight: 2,1 kg Installation depth: 216 - 276 mm Type of height adjustability: vertically adjustable upper section Length: 320 mm Width: 243 mm Height: 190 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 357 mm Tank/drain body Material of drain body: Polymer Coverage features Upper section material: Polymer
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with a stainless steel cover | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section Class B, Round slotted grating, d:230 mm | 67985 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section with pressure sealing flange, mating fl. | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| CAD Data | |
|---|---|
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Polymer
- CE marking (ce_kennzeichnung):
yes
- Upper section material (material_aufsatzstueck):
Polymer
- (abdeckung_material):
- (belastungsklasse):
