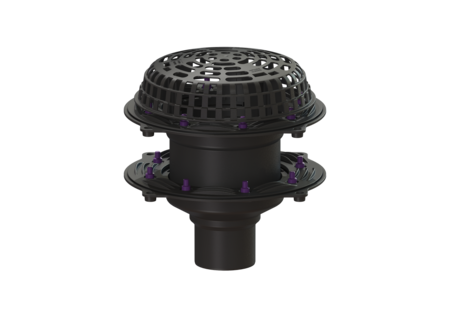

Roof drain Ecoguss
Press fl, waterpr conc, DN100, w/o heat
KESSEL Roof drain Ecoguss, without, nominal size (DN) 100, volume 64,72 dm³, type of cover Gravel trap, type of waterproofing double waterproofing layer in waterproof concrete, Cover Polymer
- Made of recyclable composite
- Permanently corrosion-free surface
| Item no. | 48310.01 |
|---|---|
| GTIN | 4026092039243 |
| Price group | 40 |
Roof drain Ecoguss Press fl, waterpr conc, DN100, w/o heat
The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Variant System: 200 Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics Standard: EN 1253 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Dimensions Vertical adjustment: 40 - 140 mm Net weight: 4,87 kg Gross weight: 5,54 kg Diameter: 365 mm Cutout dimension, width: 227 mm Cutout dimension, length: 227 mm Type of height adjustability: vertically adjustable upper section Length: 365 mm Width: 365 mm Packaging dimension: length: 430 mm Packaging dimension: width: 430 mm Packaging dimension: height: 350 mm Tank/drain body Material of drain body: Ecoguss Coverage features Type of cover: Gravel trap Cover material: Polymer Colour of cover: black Upper section material: Ecoguss
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Spacer ring Roof drain, Ecoguss | 48302 | Show |
 | Retention ring Ecoguss, H: 35 mm, DN 70/100 | 48335 | Show |
 | Retention ring Ecoguss, H: 45 mm, DN 125 | 48345 | Show |
 | Insulated body for Ecoguss flat roof drain | 48352 | Show |
 | Insulated body for Ec. roof dr.flat roof surf. w heater | 48353 | Show |
 | Insulated body for Ecoguss extension section | 48354 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Ecoguss
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111242697
- Upper section material (material_aufsatzstueck):
Ecoguss
- (abdichtung_aufsatzstueck):
