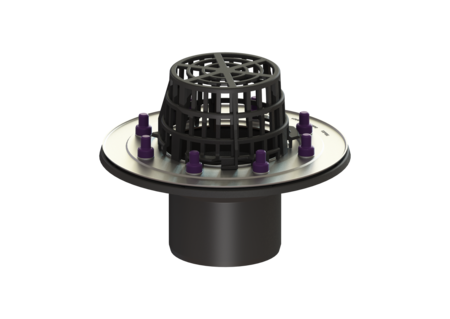

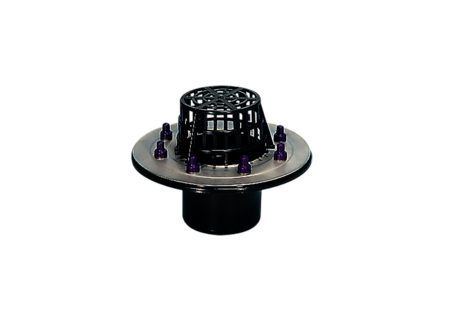

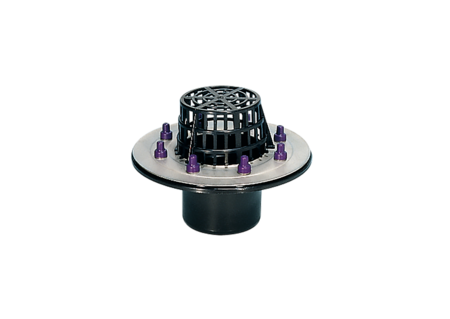

Roof drain
Press. fl., DN 100, with leaf trap
KESSEL Roof drain, without, nominal size (DN) 100, volume 10,98 dm³, type of cover Leaf trap, type of waterproofing single waterproofing layer, Cover Polymer
| Item no. | 45950 |
|---|---|
| GTIN | 4026092001318 |
| Price group | 10 |
Roof drain Press. fl., DN 100, with leaf trap
The roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Variant System: 100 Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 0,92 kg Gross weight: 1,11 kg Diameter: 246 mm Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Length: 246 mm Width: 246 mm Height: 182 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Material of drain body: PP Coverage features Type of cover: Leaf trap Cover material: Polymer Colour of cover: black Width of cover: 120 mm Height of cover: 80 mm Length of cover: 120 mm Shape of upper section: round Upper section material: PP
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
PP
- Cover material (abdeckung_material):
Polymer
- Upper section material (material_aufsatzstueck):
PP
- (abdichtung_aufsatzstueck):
