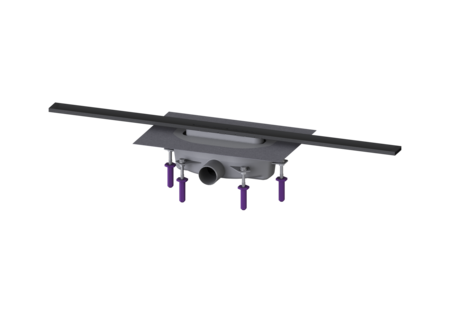

Shower chan. Linearis Infinity 90
L: 900 mm, DN 40, Black, brushed
KESSEL Shower chan. Linearis Infinity 90, cover length 900 mm, outlet DN 50 mm, surface Black brushed, type of cover Stainless steel cover, odour trap with 50 mm water seal
- Channel profile made of 316 stainless steel
- Including Sound and settlement absorbers
- No flooding of the waterproofing level in the event of water build-up
| Item no. | 45202.09 |
|---|---|
| GTIN | 4026092094242 |
| Price group | 10 |
Shower chan. Linearis Infinity 90 L: 900 mm, DN 40, Black, brushed
The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. These reduce operating noise and can compensate for subsidence in the floor structure. The channel contains a clip-on flange with a factory-mounted waterproofing membrane according to DIN EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to compensate for construction tolerances. Including an odour trap with a 50 mm water seal. Open seepage water openings, without flooding of the waterproofing level in the event of build-up. Variant Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 ATEX: no Odour trap: with 50 mm water seal Dimensions Net weight: 2,93 kg Gross weight: 2,93 kg Min. design height: 90 mm Vertically adjustable: yes Length: 264 mm Width: 111 mm Packaging dimension: length: 1112 mm Packaging dimension: width: 256 mm Packaging dimension: height: 110 mm Tank/drain body Outlet nominal size (OD): 50 mm Outlet nominal size (DN): 50 mm Material of drain body: PP Socket version: lateral Coverage features Type of cover: Stainless steel cover Cover material: 316 stainless steel Width of cover: 45 mm Length of cover: 900 mm Min. flooring height: 11 mm Surface: Black brushed Locking: placed Load class: K 3 (EN 1253-1) Max. flooring height: 25 mm Shape of upper section: square
Video
Installation Video
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Odour trap Megastop for Linearis Infinity shower channel | 45100 | Show |
 | Hair filter for Linearis Infinity shower channel | 45102 | Show |
 | Connecting piece, 90 degree for Linearis Infinity, Black, brushed | 45102.01 | Show |
 | Connecting piece, 45 degree for Linearis Infinity, Black, brushed | 45102.02 | Show |
 | Connecting piece, 30 degree for Linearis Infinity, Black, brushed | 45102.03 | Show |
 | Connector straight, Linearis Infinity shower chan. | 45103 | Show |
- Nominal size (DN) (nennweite):
50
- Material of drain body (material_grundkoerper):
PP
- Cover material (abdeckung_material):
316 stainless steel
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): with 50 mm water seal
- Outlet nominal size (DN) (auslauf_nennweite_dn): 50 mm
- Length of cover (abdeckung_laenge): 900 mm
