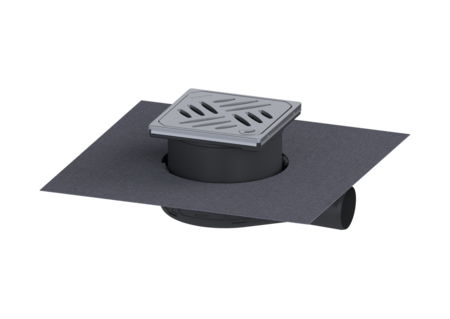

The Ultraflat 54 floor drain

DN 50, WaD, Design cover, L&L, Megastop

44750.66M
44750.66M
PDF product data sheet

KESSEL The Ultraflat 54 floor drain, nominal size (DN) 50, type of cover Design cover, height adjustability 70 - 121 mm, odour trap Megastop, waterproofing layer drain body by Factory-fitted sealing collar (WaD) according to DIN 18534, load class L 15

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44750.66M
GTIN 4026092080894
Price group 10

    The Ultraflat 54 floor drain DN 50, WaD, Design cover, L&L, Megastop
    The Ultraflat 54 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up. Variant System: 125 Seepage opening: optional Backflow protection: up to 0.1 bar Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 10 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: Megastop Dimensions Vertical adjustment: 70 - 121 mm Net weight: 0,65 kg Gross weight: 1,1 kg Type of height adjustability: vertically adjustable upper section Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Show
    44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
    48500 Odour trap Multistop, System 125 48500 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    680696 Odour trap for The Ultraflat 79 680696 Show
      Title Item no.
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
    48550 Odour trap Megastop 48550 Show
    680225 Design cover Oval, Lock & Lift 680225 Show
    680226 Design cover KESSEL, Lock & Lift 680226 Show
    680235 Design cover Cross, Lock & Lift 680235 Show
    680236 Design cover Parade, Lock & Lift 680236 Show
    680237 Design cover Festival, Lock & Lift 680237 Show
    680238 Design cover Spot, Lock & Lift 680238 Show
    680239 Design cover Slot, Lock & Lift 680239 Show
    680240 Design cover Sticks, Lock & Lift 680240 Show
    680702 Release key for Lock & Lift 680702 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
