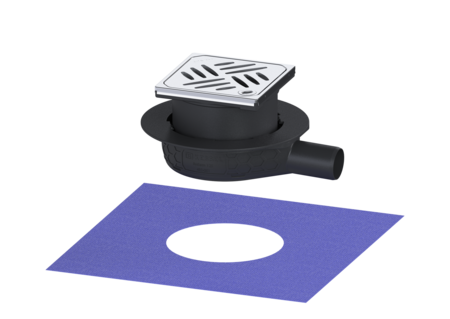

The Ultraflat 54 floor drain
DN40, enclWPM, Des grating, Lock&Lift
KESSEL The Ultraflat 54 floor drain, nominal size (DN) 40, type of cover Design cover, height adjustability 70 - 121 mm, odour trap included, waterproofing layer drain body by Enclosed sealing collar to be glued (bd) according to DIN 18534, load class L 15
- including removable odour trap in the upper section
- Low installation depth
- Scientifically confirmed sound insulation effect
| Item no. | 44740.63 |
|---|---|
| GTIN | 4026092080795 |
| Price group | 10 |
The Ultraflat 54 floor drain DN40, enclWPM, Des grating, Lock&Lift
The Ultraflat 54 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm General characteristics Nominal size (DN): 40 Outer diameter (OD): 40 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 70 - 121 mm Net weight: 0,65 kg Gross weight: 0,65 kg Type of height adjustability: vertically adjustable upper section Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Installation aid set for The Ultraflat 54 & 79 drain body | 44702 | Show |
 | Hair filter for The Ultraflat 54 & 79, System 125 | 44704 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | The Ultraflat 54 drain body DN40, enclWPM, Odour trap 22 mm | 44740 | Show |
 | Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Show |
 | Design cover Oval, Lock & Lift | 680225 | Show |
 | Design cover KESSEL, Lock & Lift | 680226 | Show |
 | Design cover Cross, Lock & Lift | 680235 | Show |
 | Design cover Parade, Lock & Lift | 680236 | Show |
 | Design cover Festival, Lock & Lift | 680237 | Show |
 | Design cover Spot, Lock & Lift | 680238 | Show |
 | Design cover Slot, Lock & Lift | 680239 | Show |
 | Design cover Sticks, Lock & Lift | 680240 | Show |
 | Odour trap for The Ultraflat 54 | 680695 | Show |
 | Release key for Lock & Lift | 680702 | Show |
- Material of drain body (material_grundkoerper):
ABS
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
