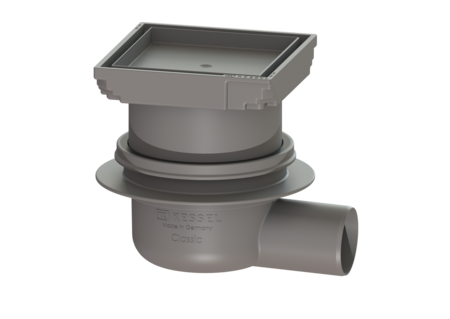

Bathroom drain, Classic
DN 50, horizontal, tileable, K 3
KESSEL Bathroom drain, Classic, length 185 mm, nominal size (DN) 50, drainage by Point drain, odour trap included, type of cover tileable cover plate, Cover tileable, socket lateral, Sealing water height 50 mm
- Odour trap height: 50 mm
- Lip seal fixed on the drain body
- System 100 - modular design
| Item no. | 40150.66 |
|---|---|
| GTIN | 4026092029275 |
| Price group | 10 |
Bathroom drain, Classic DN 50, horizontal, tileable, K 3
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 25 - 90 mm Net weight: 0,43 kg Gross weight: 0,43 kg Cutout dimension, width: 180 mm Cutout dimension, length: 220 mm Type of height adjustability: vertically adjustable upper section Length: 185 mm Width: 185 mm Packaging dimension: length: 185 mm Packaging dimension: width: 140 mm Packaging dimension: height: 155 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Width of cover: 110 mm Length of cover: 110 mm Frame material: ABS Locking: lockable Load class: K 3 (EN 1253-1) Rim width: 110 mm Rim length: 110 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/40 | 27118 | Show |
 | Adapter DN 50/70 | 27126 | Show |
 | Extension section System 100, H: 161 mm | 27146 | Show |
 | Sludge bucket d: 110 mm | 27168 | Show |
 | Extension section System 100, with pressure sealing flange | 27198 | Show |
 | Extension section System 100, with glued flange | 27199 | Show |
 | Odour trap Multistop, System 100 | 43500 | Show |
 | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
 | Intermediate section with system 100 glued flange | 47900 | Show |
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
ABS
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
- Type of cover (abdeckungsart): tileable cover plate
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
