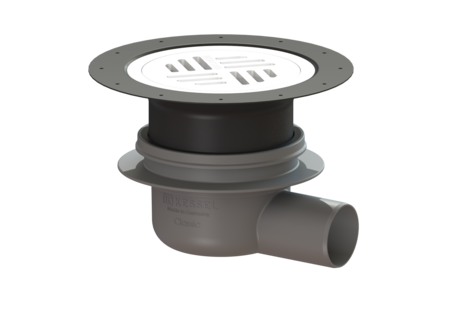

Bathroom drain, Classic
DN 50, horiz Slotted grating, K 3, round
KESSEL Bathroom drain, Classic, length 220 mm, nominal size (DN) 50, drainage by Point drain, odour trap included, type of cover Round slotted cover, Cover Polymer, socket lateral, Sealing water height 50 mm
- Odour trap height: 50 mm
- Lip seal fixed on the drain body
- System 100 - modular design
Item no. | 40150.30 |
---|---|
GTIN | 4026092028865 |
Price group | 10 |
Bathroom drain, Classic DN 50, horiz Slotted grating, K 3, round
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Nominal size (DN): 50 ATEX: no Odour trap: included Dimensions Vertical adjustment: 25 - 65 mm Net weight: 0,7 kg Gross weight: 0,81 kg Diameter: 120 mm Type of height adjustability: vertically adjustable upper section Length: 220 mm Width: 180 mm Height: 90 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: grey Frame material: ABS Load class: K 3 (EN 1253-1) Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Adapter DN 50/40 | 27118 | Show | |
Adapter DN 50/70 | 27126 | Show | |
Extension section System 100, H: 161 mm | 27146 | Show | |
Sludge bucket d: 110 mm | 27168 | Show | |
Extension section System 100, with pressure sealing flange | 27198 | Show | |
Extension section System 100, with glued flange | 27199 | Show | |
Odour trap Multistop, System 100 | 43500 | Show | |
Hair filter Polymer, for System 100 bathroom drains | 43700 | Show | |
Intermediate section with system 100 glued flange | 47900 | Show |
Manuals | |
---|---|
CAD Data |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): ABS
- Cover material (abdeckung_material): Polymer
- Frame material (rahmen_material): ABS
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): lateral
- Type of cover (abdeckungsart): Round slotted cover
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
