Yard drain

DN 100, Alrondo, vertical

37287S
PDF product data sheet

KESSEL Yard drain, nominal size (DN) 100, drainage by Point drain, socket vertical, drain body Polymer, upper section material Polymer

Item no. 37287S
GTIN 4026092044803
Price group 10

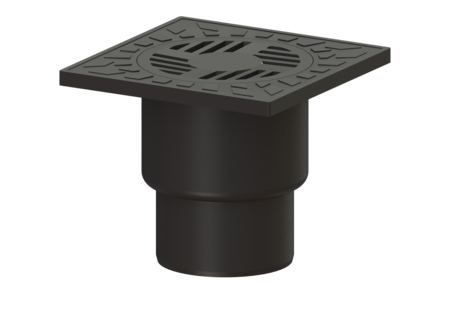

    Yard drain DN 100, Alrondo, vertical
    The polymer yard drain is used for point drainage and is equipped with a lip seal as well as a temporary protective cover. Variant System: 100 Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 1,6 General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Odour trap: included Dimensions Net weight: 0,56 kg Gross weight: 0,63 kg Packaging dimension: length: 195 mm Packaging dimension: width: 195 mm Packaging dimension: height: 165 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: black Width of cover: 200 mm Length of cover: 200 mm Surface: EDM Frame material: Polymer Locking: screwed Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: Polymer
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Round slotted cover
    • (belastungsklasse):
    • Locking (verriegelung): screwed
    • Odour trap (geruchsverschluss): included
    • (form_Aufsatzstueck):
    • (schlammeimer):
