Basement drain

DN 100, st st grating, Class L 15

29121
PDF product data sheet

KESSEL Basement drain, nominal size (DN) 100, volume 28,81 dm³, type of cover Slotted cover, Cover Stainless steel 14301, length 200 mm

  • Integrated odour trap
  • Including sludge bucket
Item no. 29121
GTIN 4026092007853
Price group 10

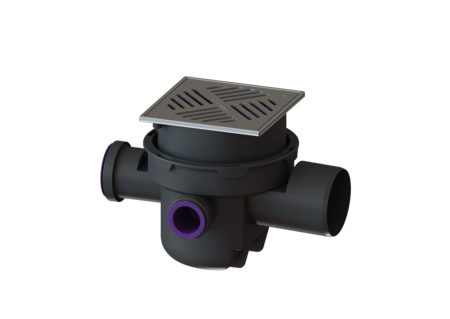

    Basement drain DN 100, st st grating, Class L 15
    The basement drain made of polymer for floor slab installation is equipped with an odour trap and a sludge bucket. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Position of lateral connection: Type II Sealing water height: 60 mm Discharge rate (l/s) with 20 mm threshold: 1,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Vertical adjustment: 30 - 90 mm Net weight: 2,97 kg Gross weight: 3,3 kg Cutout dimension, width: 320 mm Cutout dimension, length: 400 mm Installation depth: 216 - 266 mm Type of height adjustability: vertically adjustable upper section Length: 380 mm Width: 290 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Inlet nominal size (DN): 70 mm Number of inlets: 2 Material of drain body: PP Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: black Width of cover: 187 mm Length of cover: 187 mm Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Upper section material: Polymer Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    27298 Extension section with pressure sealing flange, mating fl. 27298 Show
    27602 Adapter DN 100/70 27602 Show
    27609 Anti-rat protection Insert made of stainless steel 27609 Show
    48958 Extension section Pressure sealing flange, Mating flange 48958 Show
    48982 Membrane for System 200, Waterproof concrete 48982 Show
    48988 Extension section System 200, H: 175 mm 48988 Show
      Title Item no.
    27141 Seal d: 218 mm 27141 Show
    27604 Sludge bucket for basement drain "The Universale" 27604 Show
    27605 Odour trap for basement drain 29111 27605 Show
    27643 Slotted cover 187 x 187 mm, stainless steel, class K 3 27643 Show
    48954 Upper section with a stainless steel cover 48954 Show
    680183 Seal Lip seal 680183 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Contents of sludge trap (schlammeimer): yes
