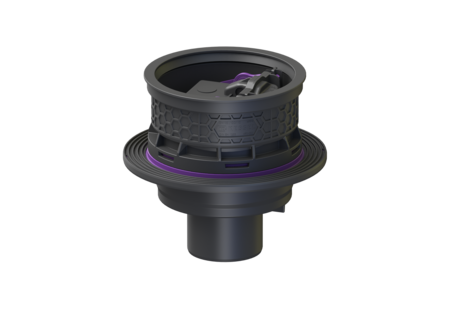

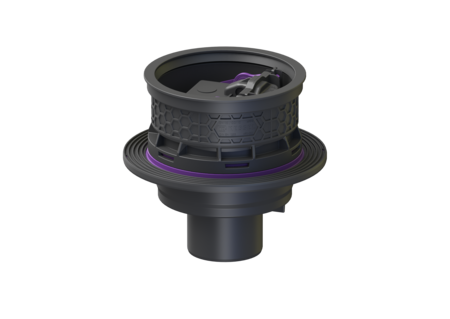

Universal Plus basement drain
ver., odour trap, Waterproof concrete
KESSEL Universal Plus basement drain, floor slab installation, odour trap included, waterproof Pre-assembled at the factory, socket vertical
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
| Item no. | 29102 |
|---|---|
| GTIN | 4026092096956 |
| Price group | 10 |
Universal Plus basement drain ver., odour trap, Waterproof concrete
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable odour trap and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Contents of sludge trap: yes Waterproof flange: Pre-assembled at the factory Sealing water height: 60 mm General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation ATEX: no Odour trap: included Dimensions Net weight: 2,38 kg Gross weight: 2,79 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 344 mm Packaging dimension: width: 344 mm Packaging dimension: height: 353 mm Tank/drain body Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Socket version: vertical Coverage features Contents of sludge trap: yes
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with a stainless steel cover | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section Class B, Round slotted grating, d:230 mm | 67985 | Show |
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
vertical
- (abdeckung_material):
- (belastungsklasse):
- (rueckstauschutz):
- (verriegelung):
- Odour trap (geruchsverschluss): included
- (wu-flansch):
- Contents of sludge trap (schlammeimer): yes
