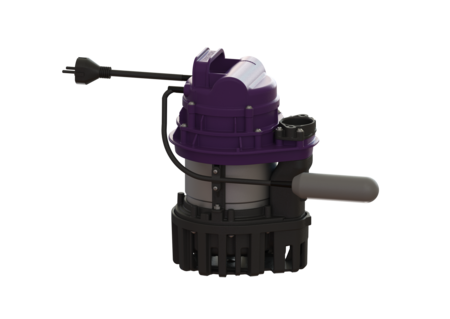

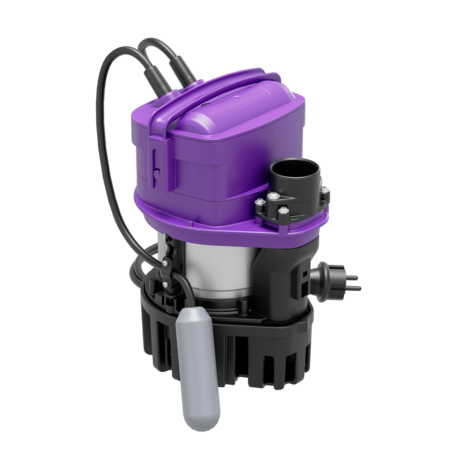

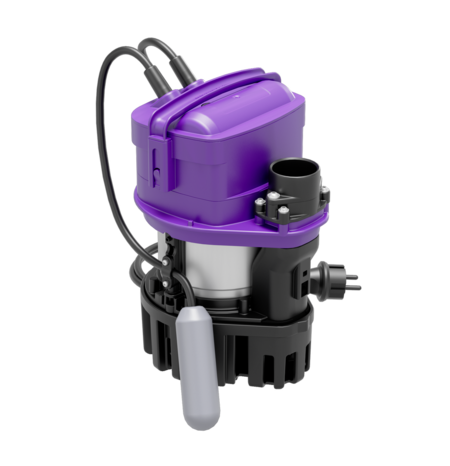

Submersible pump Aquadive GTF1000

resistant, with float switch, 10 m

28860C
28860C
PDF product data sheet

KESSEL Submersible pump Aquadive GTF1000, wastewater without sewage, pump control by Float switch, coded plug, operating mode S3 - 50 %, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems, pumping height 10 m

    • Multi-vane vortex impeller for maximum reliability
    • Longitudinally watertight potted connection cable
    • Integrated shallow extraction
    Item no. 28860C
    GTIN 4026092093771
    Price group 20

    Submersible pump Aquadive GTF1000 resistant, with float switch, 10 m
    Submersible pump for faecal-free wastewater Variant Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch General characteristics Type of wastewater: without sewage Dimensions Net weight: 10 kg Gross weight: 10,5 kg Length: 195 mm Width: 195 mm Height: 290 mm Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1000 resistant Weight, pump: 10 kg Connection type: coded plug Rated current: 5,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,75 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680035 Impeller KTP/SPZ 1000, without intake cover 680035 Show
    680361 Intake cage for faecal-free wastewater, 10 mm 680361 Show
    680364 Spiral housing for passage 10 mm 680364 Show
    • CE marking (ce_kennzeichnung): yes
    • Type of wastewater (abwasserart_de): without sewage
    • Pump (pumpe): GTF 1000 resistant
    • Operating voltage (betriebsspannung): 230  V
    • Type of level measurement (niveauerfassung_art): mechanical
