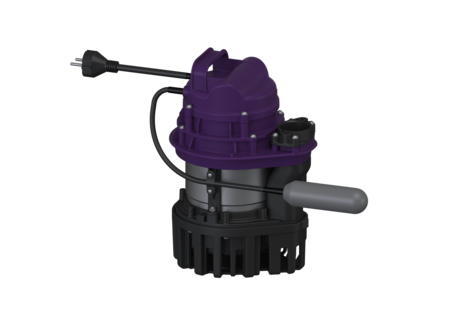

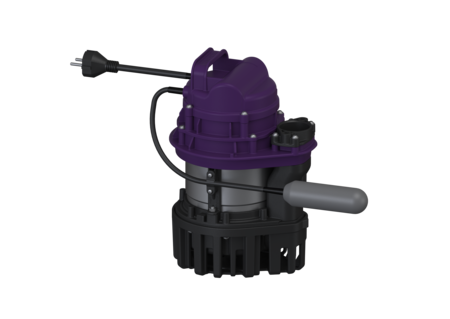

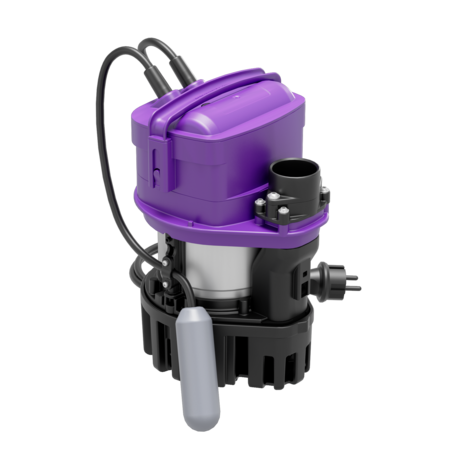

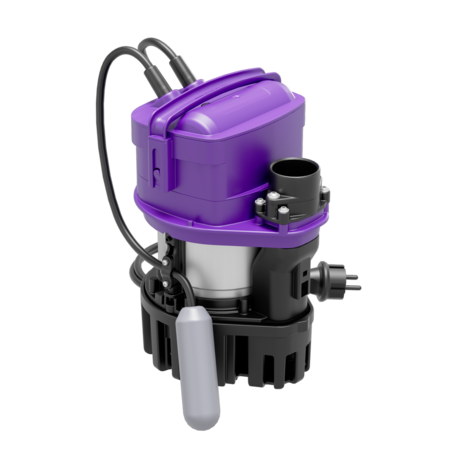

Submersible pump Aquadive GTF1000

with float switch, 10m

28860
28860
PDF product data sheet

KESSEL Submersible pump Aquadive GTF1000, wastewater without sewage, pump control by Float switch, coded plug, operating mode S3 - 50 %, pumping height 10 m

  • Multi-vane vortex impeller for maximum reliability
  • Longitudinally watertight potted connection cable
  • Integrated shallow extraction
Item no. 28860
GTIN 4026092044513
Price group 20

Submersible pump Aquadive GTF1000 with float switch, 10m
Submersible pump for faecal-free wastewater, type KTP 1000, new designation: GTF 1000 Variant Pump control: Float switch General characteristics Material: Polymer Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 10 m ATEX: no Dimensions Net weight: 10 kg Gross weight: 11,19 kg Length: 195 mm Width: 195 mm Height: 290 mm Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Wastewater contents Pressure pipe connection: R 1 ¼ " Pumping device Pump: GTF 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,6 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,75 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680035 Impeller KTP/SPZ 1000, without intake cover 680035 Show
680361 Intake cage for faecal-free wastewater, 10 mm 680361 Show
680364 Spiral housing for passage 10 mm 680364 Show
  • Material (material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Pump (pumpe): GTF 1000
  • Operating voltage (betriebsspannung): 230  V
  • Type of level measurement (niveauerfassung_art): mechanical
