Submersible pump Aquadive KTP 300

with float switch, 10m

28840
PDF product data sheet

KESSEL Submersible pump Aquadive KTP 300, wastewater without sewage, integrated, IP 68 (3m), level measurement mechanical, operating mode S1, volume 17,63 dm³, pumping height 6 m

  • Multi-vane vortex impeller for maximum reliability
  • Longitudinally watertight potted connection cable
  • Integrated shallow extraction
Item no. 28840
GTIN 4026092000939
Price group 20

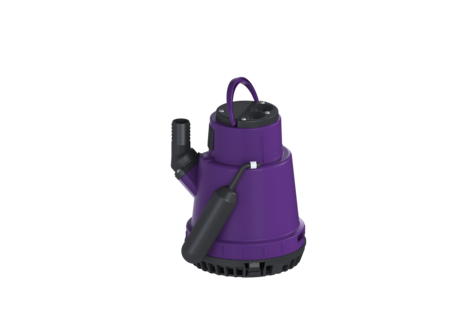

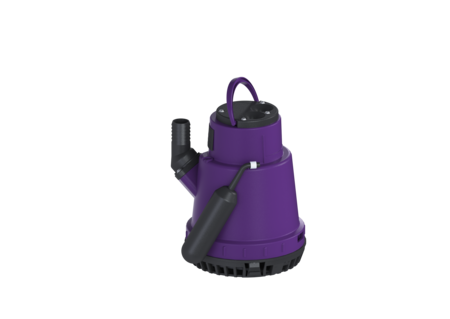

Submersible pump Aquadive KTP 300 with float switch, 10m
KTP 300 submersible pump with float switch, with non-return flap, pivoted connection, removable intake cage; the water level can be lowered to 8 mm. Variant Pump control: Float switch General characteristics Material: Polymer Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 10 m Dimensions Net weight: 4,61 kg Gross weight: 4,89 kg Length: 275 mm Width: 390 mm Height: 216 mm Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Pumping device Pump: KTP 300 Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Rated current: 1,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Material (material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Type of wastewater (abwasserart_de): without sewage
  • Pump (pumpe): KTP 300
  • Operating voltage (betriebsspannung): 230  V
  • Type of level measurement (niveauerfassung_art): mechanical
