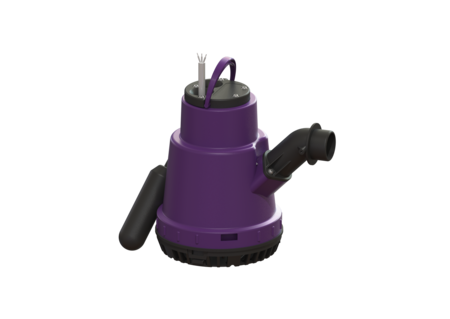

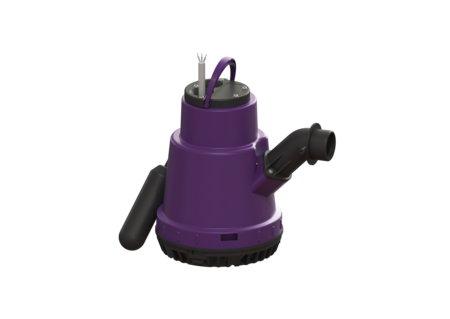

Replacement pump KTP 300
for Minilift
Replacement pump for sewage-free wastewater
| Item no. | 28836 |
|---|---|
| GTIN | 4026092000922 |
| Price group | 90 |
Replacement pump KTP 300 for Minilift
Replacement pump for sewage-free wastewater Variant Pump control: Float switch General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 5 m Dimensions Net weight: 4,21 kg Gross weight: 4,49 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Pumping device Pump: KTP 300 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 1,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Impeller KTP 300, with intake cover | 28039 | Show |
 | Intake cage with push-fit fastener, for KTP 300 | 680013 | Show |
 | Seal O-ring for pressure pipe connection | 680014 | Show |
 | Pressure pipe connection for pump, Minilift | 680017 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Pressure pipe connection KTP 300 | 680759 | Show |
| Manuals | |
|---|---|
| Declaration of Performance | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de):
without sewage
