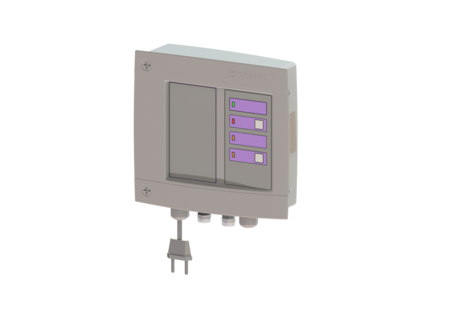

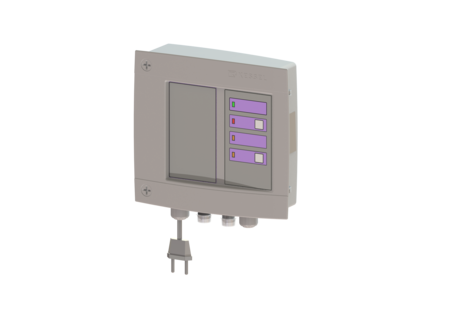

Control unit Ecolift XL type 6
for redundant valve
Plug-in ready control unit with visual and acoustic warning device for mutual failure monitoring
| Item no. | 28791 |
|---|---|
| GTIN | 4026092066430 |
| Price group | 20 |
Control unit Ecolift XL type 6 for redundant valve
Plug-in ready control unit with visual and acoustic warning device for mutual failure monitoring General characteristics Colour: grey Dimensions Net weight: 1,29 kg Gross weight: 2,03 kg Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Control Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,9 m Potential-free contact: optional GSM interface: no USB interface: yes Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Max. input power: 5 kW
