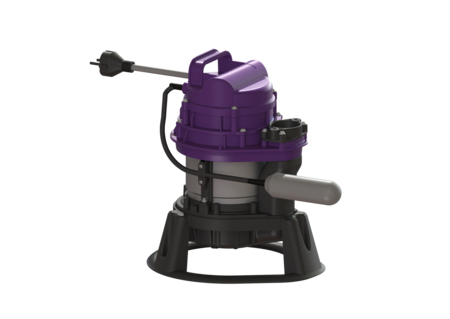

Aquadive STZ1000 submersible pump

resistant, with float switch, 10 m

28778
PDF product data sheet

KESSEL Aquadive STZ1000 submersible pump, wastewater with sewage, E-motor for alternating current, pump control by Float switch, operating mode S3 - 30 %, volume 36,2 dm³, pumping height 10 m

  • Multi-vane vortex impeller for maximum reliability
  • Longitudinally watertight potted connection cable
  • Integrated shallow extraction
Item no. 28778
GTIN 4026092055878
Price group 20

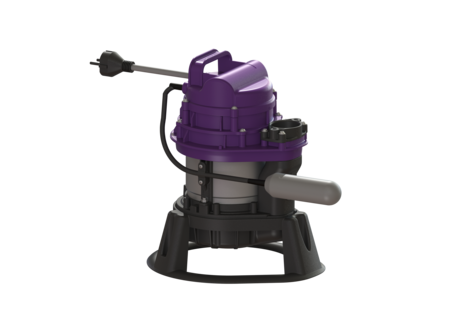

    Aquadive STZ1000 submersible pump resistant, with float switch, 10 m
    Replacement pump Aquadive without ATEX, with macerator and float control. Variant Pump control: Float switch General characteristics Material: Polymer Standard: EN 12050-1 Type of wastewater: with sewage Cable length: 10 m ATEX: no Dimensions Net weight: 11,2 kg Gross weight: 11,53 kg Length: 258 mm Width: 258 mm Height: 294 mm Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Wastewater contents Pressure pipe connection: R 1 ¼ " Pumping device Pump: STZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 4,9 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Rated current: 4,9 A Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Type of wastewater (abwasserart_de): with sewage
    • Pump (pumpe): STZ 1000
    • Operating voltage (betriebsspannung): 230  V
    • Type of level measurement (niveauerfassung_art): mechanical
