Comfort control unit

Duo, 230V, 2 cond. probes, ON 1 fix.

28746LLF
PDF product data sheet

KESSEL Comfort control unit, coded plug, alarm generator with Conductance probe, ON 1 fixed/ON 2 variable, level measurement Conductance probe, level measurement conductible, duo pump

  • Self-diagnosis system (SDS)
  • USB interface for readout and setting
  • Ready for connection with coded plugs
Item no. 28746LLF
GTIN 4026092058404
Price group 20

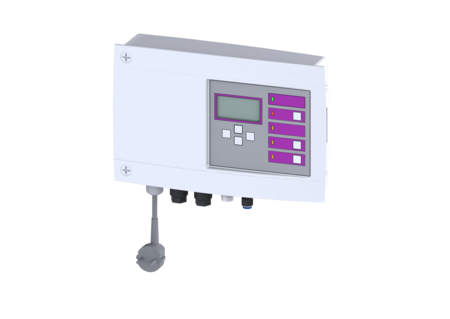

    Comfort control unit Duo, 230V, 2 cond. probes, ON 1 fix.
    Comfort control unit for lifting stations or pumping stations without ATEX requirements. Suitable for 230V double stations. Ready for connection with coded plugs for pumps, optical alarm probe and pressure sensor. Optional connection option for float switches, conductivity probes and level probe on the terminal strip. User-friendly menu navigation in multi-line display. Menu navigation in six languages. Including USB port for reading out the electronic log and reading operation-related parameters out and in. Simple selection of the system to be connected with preset, system-specific operating parameters. Display of the current measured values. Simple adjustment of the function-related parameters, with integrated operating hour counter. With self-diagnosis system (SDS) for monitoring pump, sensors and battery back-up. Improper installation or operating faults trigger an optical and acoustic alarm signal. Forwarding of a collective fault and alarm signal via optional potential-free contact or integrated serial interface (also for GSM modem). Incl. two float switches for detecting the OFF and ON switching points. Without option for detecting an alarm level. Variant Type of system: duo pump General characteristics System type: Duo Dimensions Net weight: 3,07 kg Gross weight: 3,44 kg Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Pumping device Connection type: coded plug Control Control unit: Comfort Standby power: 2,7 W Alarm sensor: Conductance probe, ON 1 fixed/ON 2 variable Level measurement instrument: Conductance probe Type of level measurement: conductible Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A Max. input power: 3,2 kW
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort
    • Type of level measurement (niveauerfassung_art): conductible
