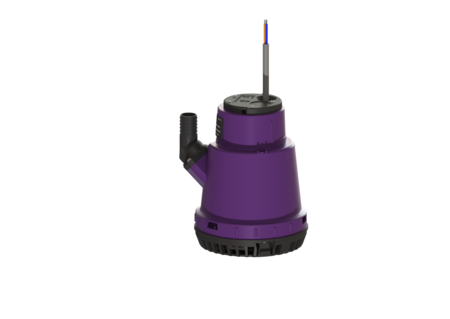

Submersible pump Aquadive KTP 300

resistant, without float switch, 10 m

28740C
28740C
PDF product data sheet

KESSEL Submersible pump Aquadive KTP 300, wastewater without sewage, IP 68, operating mode S1, Backflow preventer integrated, pumping height 6 m

    • Multi-vane vortex impeller for maximum reliability
    • Longitudinally watertight potted connection cable
    • Integrated shallow extraction
    Item no. 28740C
    GTIN 4026092094891
    Price group 20

      Submersible pump Aquadive KTP 300 resistant, without float switch, 10 m
      KTP 300 submersible pump without float switch, with non-return flap, pivoted connection, removable intake cage; the water level can be lowered to 8 mm. Variant Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Backflow preventer: integrated General characteristics Type of wastewater: without sewage Cable length: 10 m Dimensions Net weight: 4,33 kg Gross weight: 4,69 kg Length: 275 mm Width: 390 mm Height: 216 mm Packaging dimension: length: 260 mm Packaging dimension: width: 260 mm Packaging dimension: height: 260 mm Pumping device Pump: KTP 300 resistant Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Rated current: 1,9 A Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      28039 Impeller KTP 300, with intake cover 28039 Show
      680013 Intake cage with push-fit fastener, for KTP 300 680013 Show
      680014 Seal O-ring for pressure pipe connection 680014 Show
      • Type of wastewater (abwasserart_de): without sewage
      • Pump (pumpe): KTP 300 resistant
      • Operating voltage (betriebsspannung): 230  V
      • (niveauerfassung_art):
