Comfort control unit

Mono, 230V, w. level probe/float switch

28731PS
PDF product data sheet

KESSEL Comfort control unit, wastewater, Single unit, alarm generator with Float switch, level measurement Level sensor

  • Self-diagnosis system (SDS)
  • USB interface for readout and setting
  • Ready for connection with coded plugs
Item no. 28731PS
GTIN 4026092058350
Price group 20

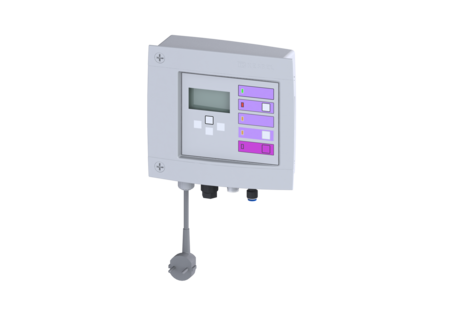

    Comfort control unit Mono, 230V, w. level probe/float switch
    Comfort control unit for lifting stations or pumping stations without ATEX requirements. Suitable for 230V single stations. Ready for connection with coded plugs for pumps, optical alarm probe and pressure sensor. Optional connection option for float switches, conductivity probes and level probe on the terminal strip. User-friendly menu navigation in multi-line display. Menu navigation in six languages. Including USB port for reading out the electronic log and reading operation-related parameters out and in. Simple selection of the system to be connected with preset, system-specific operating parameters. Display of the current measured values. Simple adjustment of the function-related parameters, with integrated operating hour counter. With self-diagnosis system (SDS) for monitoring pump, sensors and battery back-up. Improper installation or operating faults trigger an optical and acoustic alarm signal. Forwarding of a collective fault and alarm signal via optional potential-free contact or integrated serial interface (also for GSM modem). Incl. two float switches for detecting the OFF and ON switching points. Without option for detecting an alarm level. Variant Type of system: Single unit General characteristics System type: Mono ATEX: no Dimensions Net weight: 3,93 kg Gross weight: 4,43 kg Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Control Control unit: Comfort Standby power: 2,7 W Alarm sensor: Float switch Level measurement instrument: Level sensor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. input power: 1,6 kW
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort
    • Type of level measurement (niveauerfassung_art): pneumatic
