Lifting station Aqualift F Comp.
Mono, SPZ 1000, Floor slab, black

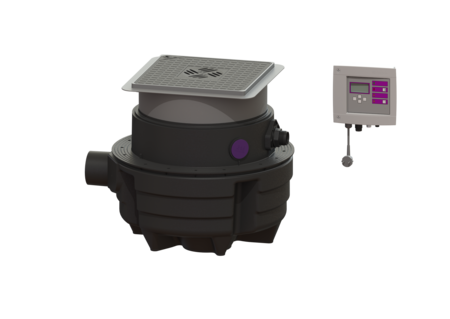

KESSEL Lifting station Aqualift F Comp. Mono, wastewater with sewage, type of cover Cover plate with slotted cover, floor slab installation, installation depth 490 - 600 mm, with a submersible SPZ 1000 pump
- Suitable for complete basement drainage
- Integrated drainage function when installed in the floor slab
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 28701S |
|---|---|
| GTIN | 4026092073063 |
| Price group | 20 |
Lifting station Aqualift F Comp. Mono, SPZ 1000, Floor slab, black
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Shut-off valve: without shut-off valve Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Mono Odour trap: Multistop Dimensions Net weight: 33,4 kg Gross weight: 37 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 800 mm Cutout dimension, length: 800 mm Installation depth: 490 - 600 mm Type of height adjustability: vertically adjustable upper section Length: 670 mm Width: 590 mm Packaging dimension: length: 620 mm Packaging dimension: width: 620 mm Packaging dimension: height: 1030 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 50 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 351 mm Distance pipe bottom outlet to tank bottom: 351 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): Fuse protection through control unit 230 V
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Retrofit kit Alarm float switch | 28016 | Show |
 | Compressor set for air bubbling | 28048 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
 | Potential-free contact Additio. circuit board for control units | 80072 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Knife replacement set KTP 1000 / SPZ 1000 | 28075 | Show |
 | Splash guard set for optical probe | 28706 | Show |
 | Control unit Comfort Mono, 230 V | 28731 | Show |
 | Cover for pump opening | 28732 | Show |
 | Pump plate Aqualift F Compact | 28733 | Show |
 | Connector Immersion pipe | 28734 | Show |
 | Replacement pump KTP/SPZ 1000 230 V, with extended press. pipe connec. | 28739 | Show |
 | Immersion pipe Aqualift F Compact, 5 m Schlauch | 28744 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Pump connection for pumping stations, up to 12/2015 | 680065 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Turn fastener for pumps | 680070 | Show |
 | Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F | 680075 | Show |
 | Cover with seal | 680076 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Drain connection DN 70, with seal | 680215 | Show |
 | Seal set Aqualift F Compact Mono | 680453 | Show |
 | Pump connection Aqualift F Compact, Mono, from 01/2016 | 680486 | Show |
 | Odour trap for The Ultraflat 79 | 680696 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
 | Cover plate 366 x 366 mm high drain body, 50mm odour trap, tilea. | 830055 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): Cover plate with slotted cover
- Pump (pumpe): SPZ 1000
- Installation depth (einbautiefe): 490 mm
- Odour trap (geruchsverschluss): Multistop
- (ausfuehrung):
