Lifting station Aqualift F
Mono, Standard, SPF 3000-S3,shut-off val

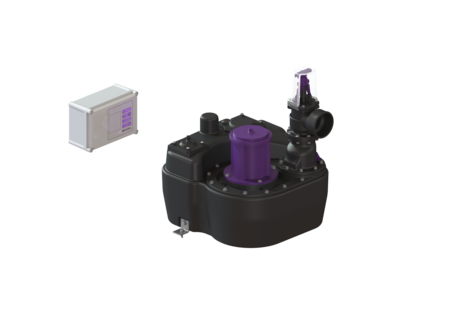

KESSEL Lifting station Aqualift F Mono, wastewater with sewage, control unit Standard, free-standing installation, Single unit, with a submersible SPF 3000 pump, shut-off valve Shut-off valve made of polymer, pressure pipe connection horizontal
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Including sound absorption mat
| Item no. | 28649 |
|---|---|
| GTIN | 4026092007686 |
| Price group | 20 |
Lifting station Aqualift F Mono, Standard, SPF 3000-S3,shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Mono ATEX: no Dimensions Net weight: 49,16 kg Gross weight: 50,45 kg Length: 564 mm Width: 525 mm Height: 664 mm Packaging dimension: length: 645 mm Packaging dimension: width: 530 mm Packaging dimension: height: 570 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 466 mm Distance pipe bottom inlet to tank bottom: 125 mm Distance from centre of inlet pipe to tank bottom: 180 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 50 l Pumping device Pump: SPF 3000 Number of pumps: 1 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Standard Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes Log book function: yes Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,4 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Retrofit kit Alarm float switch, Aqualift F and F Duo | 28015 | Show |
 | Compressor set for air bubbling | 28048 | Show |
 | Flexible coupling DN 80, L: 200 mm | 28662 | Show |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Show |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
 | Shut-off valve DN 100, Polymer | 28698 | Show |
 | Shut-off valve DN 150, Polymer | 28699 | Show |
 | Flange joint DN 100, for polymer fittings | 28712 | Show |
 | Flange joint DN 80, for polymer fittings | 28713 | Show |
 | Flange adapter DN 80, for polymer fitting | 28714 | Show |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Show |
 | Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Pump drive SPF 3000 400 V, S3, 5 m cable | 28027 | Show |
 | Pressure monitor Mono, with seal | 28045 | Show |
 | Replacement set pump flange with screw set, flange gasket | 28051 | Show |
 | Seal set DN 70, DN 100 | 28608 | Show |
| Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Flap housing set Mono, DN 100 | 28676 | Show |
| Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
| Flange adapter DN 80, for polymer fitting | 28714 | Show |
 | Battery 9 V block | 680034 | Show |
 | Cleaning cover screwed, 160x140 mm | 680044 | Show |
 | Seal Pump flange | 680045 | Show |
 | Attachment bracket with screws (2 ea.) | 680046 | Show |
 | Screw set galvanised, 14 each | 680047 | Show |
 | Immersion pipe Mono, 10 m cable | 680048 | Show |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Show |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Show |
 | Flap set Rolling ring, flap, flap holder | 680053 | Show |
 | Immersion pipe Mono, 5 m hose | 680055 | Show |
 | Flap housing for Mono systems, without shut-off valve | 680060 | Show |
 | Standard control unit Mono, 400 V, 5.5 A | 680087 | Show |
 | Impeller SPF 3000, for Aqualift lifting stations | 680642 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- Pump (pumpe): SPF 3000
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): Shut-off valve made of polymer
