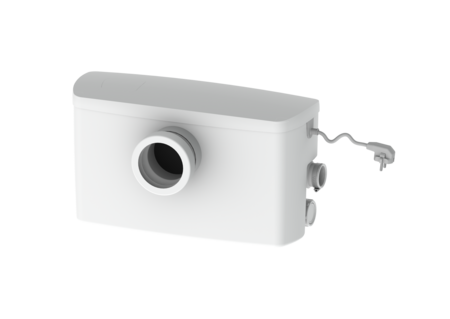

Lifting station Minilift F

Free-standing set-up

28520
28520
PDF product data sheet

KESSEL Lifting station Minilift F, wastewater with sewage, free-standing installation, with a submersible pump, operating mode S3 - 30 %, level measurement pneumatic

  • High-performance cutting unit SharkTwister
  • Intelligent control technology
  • Easy maintenance
Item no. 28520
GTIN 4026092072899
Price group 20

Lifting station Minilift F Free-standing set-up
The ready to plug in small lifting station for faecal and faecal-free wastewater is suitable for the wastewater drainage of individual toilets. The collection tank made of polymer (ABS) is equipped with a backflow preventer, an activated carbon filter, an alarm function, a horizontal inlet DN 100 and two horizontal inlets DN 40. The integrated control unit controls the small lifting station via pneumatic level measurement. Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: white Standard: EN 12050-3 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: plug-in ready Dimensions Net weight: 7,33 kg Gross weight: 7,53 kg Length: 488 mm Width: 237 mm Height: 285 mm Packaging dimension: length: 600 mm Packaging dimension: width: 240 mm Packaging dimension: height: 330 mm Tank/drain body Pressure pipe connection (OD): 28 mm Distance from centre of outlet pipe to tank bottom: 108 mm Distance from centre of inlet pipe to tank bottom: 180 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 3 Pumping volume: 4 l Tank volume: 11 l Pumping device Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 2,8 A Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6,4 m Speed: 2900 U/min Power P1: 0,65 kW Power P2: 0,35 kW Operating mode: S3 - 30 % Type of pump connection cable: H03 VV-F 3G 0.75 mm² Impeller type: Macerator Length of mains cable for pump: 1,6 m Control Type of level measurement: pneumatic Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680542 Backflow preventer with pressure pipe connection 680542 Show
680543 Inlet set DN 40, with non-return flap 680543 Show
680544 Active carbon filter for Minilift F 680544 Show
680545 Seal for Minilift F pump 680545 Show
680546 Replacement pump, Minilift F with seal monitoring 680546 Show
680547 Capacitor for Minilift F 680547 Show
680673 Inlet seal DN 100, for Minilift F 680673 Show
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
