Technology kit
Aqualift S Comp GTF1200Res Mono Tronic
KESSEL Technology kit Aqualift S Comp GTF1200Res Mono Tronic, with a submersible GTF 1200 resistant pump, operating mode S1, Single unit, level measurement pneumatic, pumping height 9 m
| Item no. | 281250C-TK |
|---|---|
| GTIN | 4026092108017 |
| Price group | 20 |
Technology kit Aqualift S Comp GTF1200Res Mono Tronic

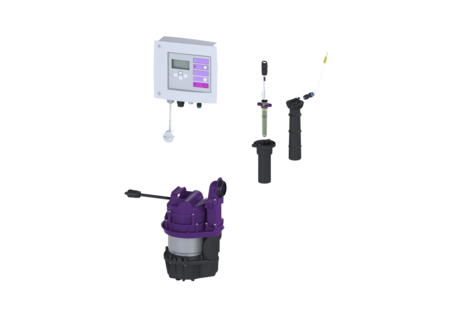

For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system using a potential-free contact or alarm and collective fault messages that can be output through a GSM interface. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Comfort control unit 230 V - Optical alarm probe - Pneumatic level measurement Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Control unit General characteristics ATEX: no Dimensions Net weight: 14,8 kg Gross weight: 14,8 kg Packaging dimension: length: 420 mm Packaging dimension: width: 420 mm Packaging dimension: height: 340 mm Pumping device Pump: GTF 1200 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 6,2 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 6,2 A Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Control unit (schaltgeraet): Comfort
- Number of pumps (anzahl_pumpen): 1
- Resistant (resistant): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
