Technology kit

Aqualift S Compact GTF1200 Mono float sw

281200-TK
PDF product data sheet

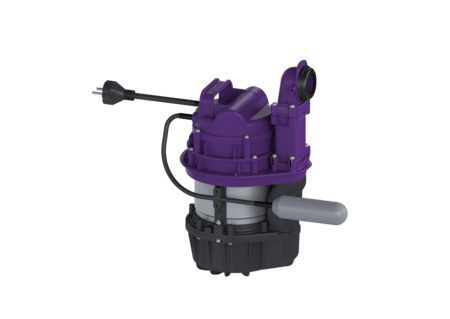

KESSEL Technology kit Aqualift S Compact GTF1200 Mono float sw, with a submersible GTF 1200 pump, operating mode S3 - 10 %, Single unit, level measurement mechanical, pumping height 9 m

    Item no. 281200-TK
    GTIN 4026092108123
    Price group 20

      Technology kit Aqualift S Compact GTF1200 Mono float sw
      For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Includes float switch for level measurement Variant Type of system: Single unit Pump control: Float switch General characteristics ATEX: no Dimensions Net weight: 10,5 kg Gross weight: 11,5 kg Packaging dimension: length: 379 mm Packaging dimension: width: 362 mm Packaging dimension: height: 293 mm Tank/drain body Pumping volume: 16 l Pumping device Pump: GTF 1200 Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 10 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Length of mains cable for pump: 5 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A Type of fuse required (electrical protection): C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      Declaration of Conformity
      • Number of pumps (anzahl_pumpen): 1
      • (schaltgeraet):
      • Resistant (resistant):
