Technology kit

for Minilift L, underground KTP300 res.

280570C-TK
PDF product data sheet

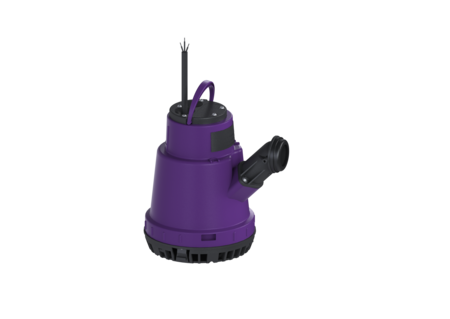

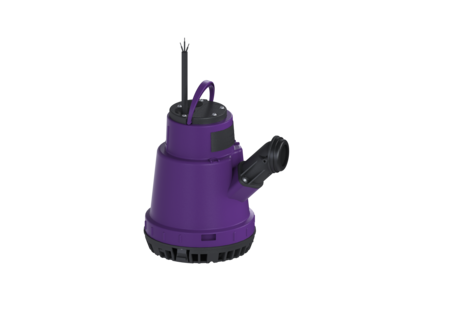

KESSEL Technology kit for Minilift L, underground KTP300 res., with a submersible KTP 300 resistant pump, operating mode S1, Single unit, pumping height 6 m

Item no. 280570C-TK
GTIN 4026092108093
Price group 20

Technology kit for Minilift L, underground KTP300 res.
For combination with a KESSEL shell kit for creating a Minilift L small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Includes float switch for level measurement Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated Dimensions Net weight: 4,05 kg Gross weight: 4,34 kg Packaging dimension: length: 281 mm Packaging dimension: width: 246 mm Packaging dimension: height: 273 mm Pumping device Pump: KTP 300 resistant Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
