Technology kit

Aqualift S Comp GTF500 Res Mono Tronic

280550C-TK
PDF product data sheet

KESSEL Technology kit Aqualift S Comp GTF500 Res Mono Tronic, with a submersible GTF 500 resistant pump, operating mode S1, Single unit, level measurement pneumatic, pumping height 8 m

    Item no. 280550C-TK
    GTIN 4026092107997
    Price group 20

      Technology kit Aqualift S Comp GTF500 Res Mono Tronic

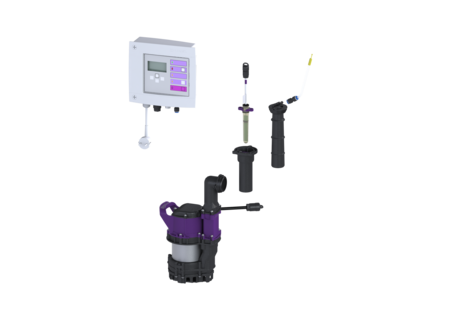

      For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF500 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system using a potential-free contact or alarm and collective fault messages that can be output through a GSM interface. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Comfort control unit 230 V - Optical alarm probe - Pneumatic level measurement Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems General characteristics ATEX: no Dimensions Net weight: 10,5 kg Gross weight: 10,5 kg Packaging dimension: length: 420 mm Packaging dimension: width: 420 mm Packaging dimension: height: 340 mm Pumping device Pump: GTF 500 resistant Number of pumps: 1 Connection type: coded plug Rated current: 2,7 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 10 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A Type of fuse required (electrical protection): C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Number of pumps (anzahl_pumpen): 1
      • Resistant (resistant): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
