Shell Kit
Aqualift S Compact tileable GTF500 Duo

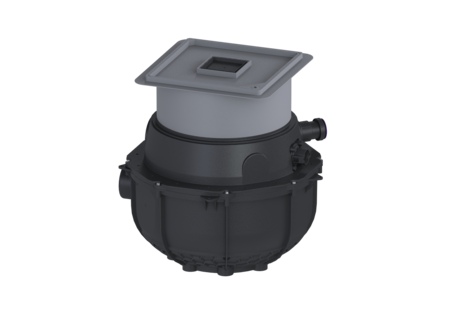

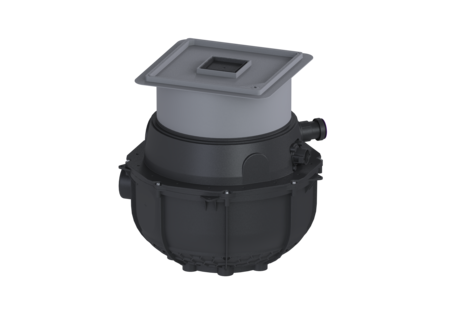

KESSEL Shell Kit Aqualift S Compact tileable GTF500 Duo, wastewater without sewage, floor slab installation, with 2 submersible GTF 500 pumps
| Item no. | 280510X-RBK |
|---|---|
| GTIN | 4026092106938 |
| Price group | 20 |
Shell Kit Aqualift S Compact tileable GTF500 Duo
For combination with a KESSEL technology kit for creating a Duo lifting station for wastewater without sewage with a GTF500 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - PE collection tank, resistant to aggressive wastewater and 3 m groundwater - Includes backflow preventer for the pressure pipe - Includes connection socket for inlet and conduit pipe Variant Type of system: duo pump Pump control: Float switch General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 16,2 kg Gross weight: 16,2 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Tank volume: 65 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: grey Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: GTF 500 Number of pumps: 2 Operating voltage: 230 V Max. pumping height: 8 m Control Operating voltage: 230 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation): floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Type of cover (abdeckungsart): tileable cover plate
- Pump (pumpe): GTF 500
