Aqualift S Compact lift stat.
Mono, GTF 500, Floor slab, tileable

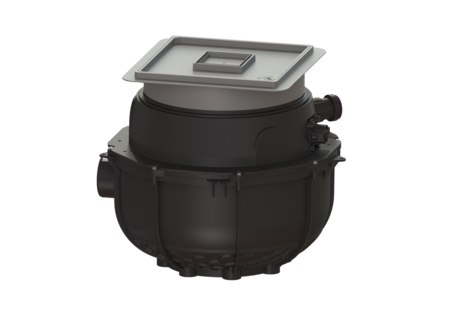

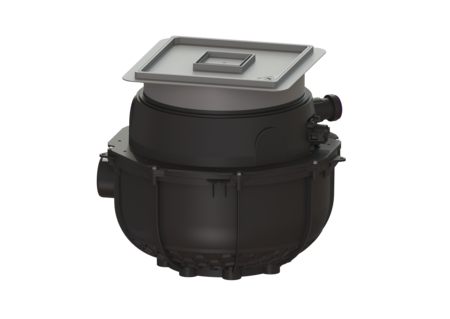

KESSEL Aqualift S Compact lift stat. Mono, wastewater without sewage, floor slab installation, with a submersible GTF 500 pump, level measurement Float switch, type of cover tileable cover plate, silver grey
- Space-saving due to installation in floor slab with integrated drainage function
- Easy retrofitting from Mono to Duo possible
- Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
| Item no. | 280500X |
|---|---|
| GTIN | 4026092082577 |
| Price group | 20 |
Aqualift S Compact lift stat. Mono, GTF 500, Floor slab, tileable
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Mono Dimensions Net weight: 22,5 kg Gross weight: 23,4 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: silver grey Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: GTF 500 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 2,7 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 10 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/70 | 27126 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
 | Compressor set for air bubbling | 28048 | Show |
| Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Show |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Hair filter Polymer, for System 125 bathroom drains | 48700 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Odour trap for The Ultraflat 79 | 680696 | Show |
 | Drain body for cover plate for odour trap 50 mm, black | 680795 | Show |
 | Drain body for cover plate for Multistop, black | 680796 | Show |
 | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Show |
 | Drain body for cover plate for Multistop, grey | 680798 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
| Title | Item no. | ||
|---|---|---|---|
| Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Locking key for Ecoguss slotted gratings,Lock & Lift | 67007 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Cover tileable, Lock & Lift, ABS | 680224 | Show |
 | Pump connection with seal and flap | 680475 | Show |
 | Release key for Lock & Lift | 680702 | Show |
 | Pressure pipe connection with seal and screws | 680758 | Show |
 | Pump connection Minilift L, Aqualift S | 680760 | Show |
 | Flap housing Mono, with pump connector | 680761 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Replacement pump GTF 500 with float switch | 680764 | Show |
 | Multi-vane impeller for GTF 500 | 680767 | Show |
 | Spiral housing for GTF 500 | 680768 | Show |
| Screw set for intake cage, GTF 500 | 680769 | Show | |
 | Intake cage for GTF 500 | 680770 | Show |
 | Pump hanger for Aqualift S Compact, Mono, GTF 500 | 680771 | Show |
 | Pressure pipe connection for GTF 500, Aqualift S Compact | 680792 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Cover plate Tileable with drainage function | 830054 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Type of cover (abdeckungsart): tileable cover plate
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Pump (pumpe): GTF 500
- (ausfuehrung):
