Technology kit

Aqualift S Compact GTF500 Mono Schwimmer

280500-TK
PDF product data sheet

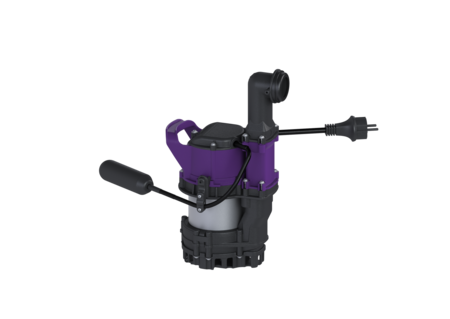

KESSEL Technology kit Aqualift S Compact GTF500 Mono Schwimmer, with a submersible GTF 500 pump, operating mode S1, Single unit, level measurement mechanical, pumping height 8 m

    Item no. 280500-TK
    GTIN 4026092108109
    Price group 20

      Technology kit Aqualift S Compact GTF500 Mono Schwimmer
      For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF500 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Includes float switch for level measurement Variant Type of system: Single unit Pump control: Float switch Dimensions Net weight: 6,68 kg Gross weight: 6,68 kg Packaging dimension: length: 281 mm Packaging dimension: width: 246 mm Packaging dimension: height: 397 mm Tank/drain body Pumping volume: 16 l Pumping device Pump: GTF 500 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Rated current: 2,7 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 10 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Number of pumps (anzahl_pumpen): 1
      • (schaltgeraet):
      • Resistant (resistant):
