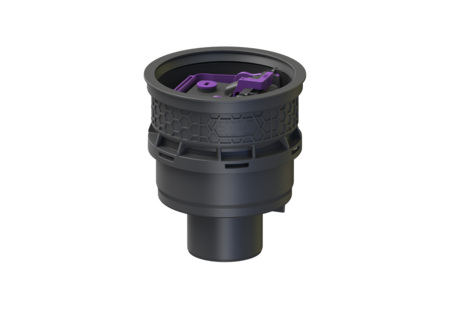

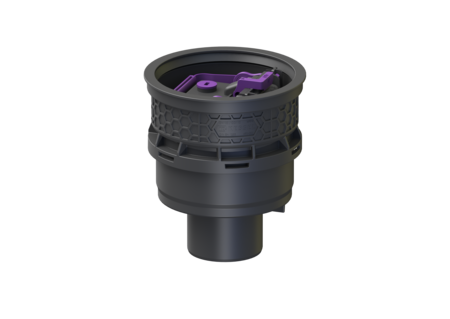

Universal Plus basement drain
vertical, with backwater valve
KESSEL Universal Plus basement drain, floor slab installation, odour trap no, backwater protection Type 5, waterproof without, socket vertical
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
| Item no. | 27660 |
|---|---|
| GTIN | 4026092096949 |
| Price group | 10 |
Universal Plus basement drain vertical, with backwater valve
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps, a one hand-lockable emergency closure and a sludge bucket. Including temporary protective cover. Variant Contents of sludge trap: yes Emergency closure: yes Waterproof flange: without Sealing water height: 60 mm Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 ATEX: no Odour trap: no Dimensions Net weight: 1,85 kg Gross weight: 2,34 kg Diameter: 235 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 296 mm Packaging dimension: width: 266 mm Packaging dimension: height: 315 mm Tank/drain body Socket version: vertical Coverage features Contents of sludge trap: yes
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with a stainless steel cover | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section Class B, Round slotted grating, d:230 mm | 67985 | Show |
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
vertical
- (abdeckung_material):
- (belastungsklasse):
- Backwater protection (rueckstauschutz): Type 5
- (verriegelung):
- Odour trap (geruchsverschluss): no
- (wu-flansch):
