Universal Plus basement drain

ver., black, Backw.valve, Waterpr.concr.

27631
27631

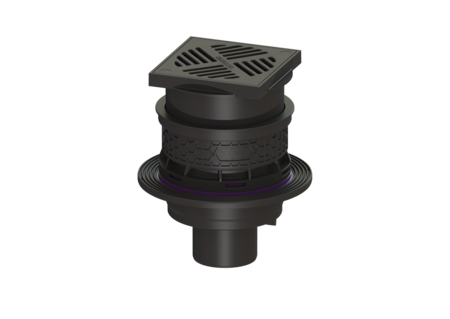

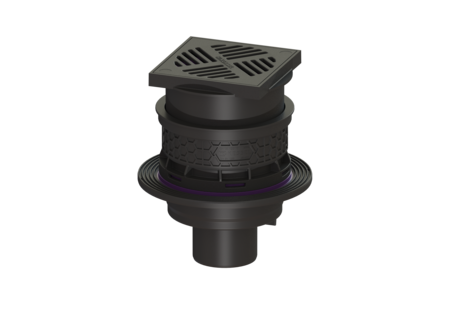

KESSEL Universal Plus basement drain, black, odour trap, backwater protection Type 5, socket vertical, 2 mechanical backwater flaps, installation depth 293 - 350 mm, yes, floor slab installation

  • Sustainable due to use of recycled material
  • Inlets above the floor slab, no penetration required
  • Vertical outlet for easy installation and easy access to the main drainage pipe
Item no. 27631
GTIN 4026092096864
Price group 10

    Universal Plus basement drain ver., black, Backw.valve, Waterpr.concr.
    The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps and a one hand-lockable emergency closure. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Contents of sludge trap: yes Emergency closure: yes Waterproof flange: Pre-assembled at the factory Sealing water height: 60 mm Discharge rate (l/s) with 10 mm threshold: 1,4 Discharge rate (l/s) with 20 mm threshold: 1,9 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 ATEX: no Dimensions Net weight: 3,21 kg Gross weight: 3,62 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Adjustment range: 23 - 80 Installation depth: 293 - 350 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 344 mm Packaging dimension: width: 344 mm Packaging dimension: height: 353 mm Tank/drain body Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1) Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    27609 Anti-rat protection Insert made of stainless steel 27609 Show
    48958 Extension section Pressure sealing flange, Mating flange 48958 Show
    48988 Extension section System 200, H: 175 mm 48988 Show
      Title Item no.
    27603 Backwater valve Module for basement drains with 2 flaps 27603 Show
    27604 Sludge bucket for basement drain "The Universale" 27604 Show
    27613 Slotted cover 188x188 mm, polymer, black 27613 Show
    27650 Universal Plus basement drain vert., backwater valve, Waterpr.concr. 27650 Show
    27714 Upper section for plastic grating 27714 Show
    48964 Upper section Black slotted cover, 200 x 200 mm, K 3 48964 Show
    681036 Seal for basement drain System 200, D: 175 mm 681036 Show
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): without sewage
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Backwater protection (rueckstauschutz): Type 5
    • (verriegelung):
    • Odour trap (geruchsverschluss):
    • (wu-flansch):
