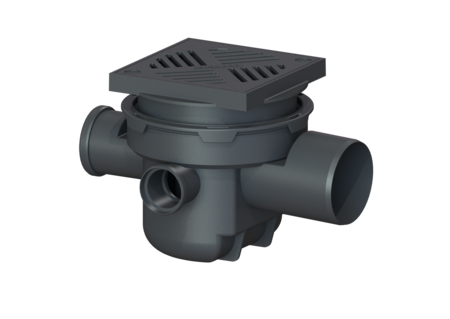

Drain body The Universal
DN 100, Black grating, Backwater prot
KESSEL Drain body The Universal, floor slab installation, socket lateral, type of cover Slotted cover, black, Cover Polymer, waterproof without, backwater protection Type 5
- Flexible installation: vertically adjustable upper section rotatable
- Integrated backwater protection
- vertically adjustable
| Item no. | 27611 |
|---|---|
| GTIN | 4026092007822 |
| Price group | 10 |
Drain body The Universal DN 100, Black grating, Backwater prot
The polymer drain body is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure and a sludge bucket. The drain body also has two inlets DN 50 and one inlet DN 70 with blind plug. Material: PP Variant Contents of sludge trap: yes Emergency closure: yes Waterproof flange: without Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: installation-ready Backwater protection: Type 5 ATEX: no Odour trap: included Dimensions Net weight: 2,69 kg Gross weight: 3,02 kg Cutout dimension, width: 320 mm Cutout dimension, length: 400 mm Installation depth: 216 - 276 mm Type of height adjustability: vertically adjustable upper section Length: 380 mm Width: 300 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Load class: K 3 (EN 1253-1) Grid size, length: 188 mm Grid size, width: 188 mm Grid size, height: 25 mm Contents of sludge trap: yes Cover Grid size, length: 188 mm Grid size, width: 188 mm Grid size, height: 25 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section with pressure sealing flange, mating fl. | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Backwater valve Module for basement drains with 2 flaps | 27603 | Show |
 | Sludge bucket for basement drain "The Universale" | 27604 | Show |
 | Slotted cover 188x188 mm, polymer, black | 27613 | Show |
 | Upper section for plastic grating | 27714 | Show |
 | Seal Lip seal | 680183 | Show |
 | Testing funnel with seal | 70214 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Backwater protection (rueckstauschutz): Type 5
- Odour trap (geruchsverschluss): included
- (verriegelung):
- (wu-flansch):
- Contents of sludge trap (schlammeimer): yes
