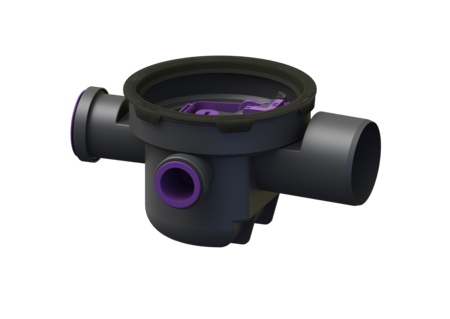

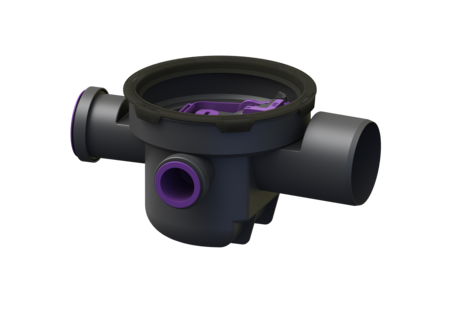

Drain body The Universal
DN 100, 3 inlets, w. backwater valve
KESSEL Drain body The Universal, floor slab installation, socket lateral, backwater protection Type 5
- Flexible installation: vertically adjustable upper section rotatable
- Integrated backwater protection
- vertically adjustable
| Item no. | 27600 |
|---|---|
| GTIN | 4026092085141 |
| Price group | 10 |
Drain body The Universal DN 100, 3 inlets, w. backwater valve
The polymer drain body is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure and a sludge bucket. The drain body also has two inlets DN 50 and one inlet DN 70 with blind plug. Material: PP Variant Sealing water height: 60 mm Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 ATEX: no Odour trap: included Dimensions Net weight: 2,31 kg Gross weight: 2,31 kg Length: 380 mm Width: 285 mm Height: 190 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Material of drain body: PP Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with a stainless steel cover | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section Class B, Round slotted grating, d:230 mm | 67985 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section with pressure sealing flange, mating fl. | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
PP
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
lateral
- (abdeckung_material):
- (belastungsklasse):
- Backwater protection (rueckstauschutz): Type 5
- Odour trap (geruchsverschluss): included
