Cleanout

Sys 100, ABS, Cover 304 SST, screw, K3

PDF product data sheet

KESSEL Cleanout, surface Polished SST, length 150 mm, width 150 mm, type of cover closed cover plate, locking screwed, frame material ABS, Cover Stainless steel 14301

Item no. 27191G
GTIN 4026092054932
Price group 10

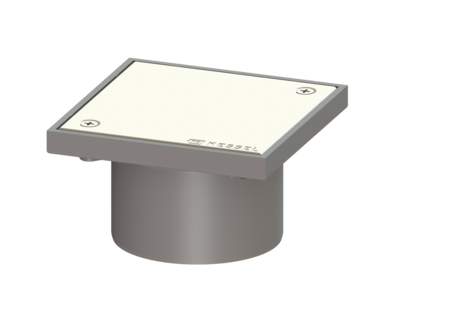

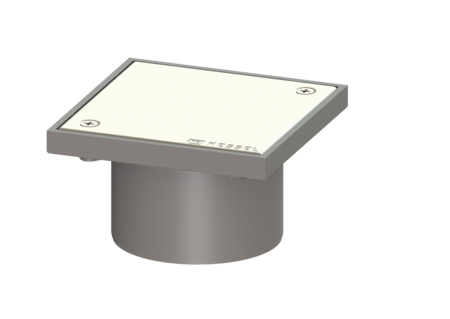

    Cleanout Sys 100, ABS, Cover 304 SST, screw, K3
    The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate. Variant System: 100 Dimensions Net weight: 0,45 kg Gross weight: 0,45 kg Height: 93 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 90 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 17 mm Surface: Polished SST Frame material: ABS Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
