Backwater pump station, Pumpfix F
DN 100, Floor slab, tileable

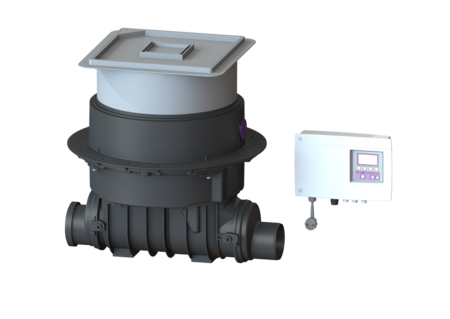

KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, nominal size (DN) 100, type of cover tileable cover plate, locking Lock & Lift, level measurement optical probe
- Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
- Flexible installation, different covers with drain function available for installation in the floor slab
- Quiet and energy-saving
| Item no. | 24100X |
|---|---|
| GTIN | 4026092046531 |
| Price group | 30 |
Backwater pump station, Pumpfix F DN 100, Floor slab, tileable
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Odour trap: Multistop Dimensions Net weight: 28,2 kg Gross weight: 31 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 642 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Length of mains cable for pump: 5 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Clearance code for potential-free contact | 80077 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for motor | 80890 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Lockable cover Inlet side | 28054 | Show |
 | Lockable cover Outlet side | 28056 | Show |
 | Ventilation with activated carbon filter | 28060 | Show |
 | Active carbon filter 5 each | 28061 | Show |
 | Control unit Comfort 230 V, Ecolift, Pumpfix F from 01/2011 | 28071 | Show |
 | Knife replacement set KTP 1000 / SPZ 1000 | 28075 | Show |
 | Replacement pump KTP/SPZ 1000 230 V, cable length 5 m | 28351 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F | 680075 | Show |
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Pressure pipe connection with backflow preventer | 680104 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Drain connection DN 70, with seal | 680215 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal set Pumpfix, Ecolift | 70319 | Show |
 | Backwater flap motor-driven, with flap holder | 80038 | Show |
 | Slide-in flap housing for motorised flap with flap holder | 80039 | Show |
 | Drive motor plug-in ready, 5 m cable | 80076 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
 | Cover plate 366 x 366 mm w. flat drain body, Multistop, tileable | 830045 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
 | Spigot DN 100, with seal | 83081 | Show |
 | Socket DN 100, with seal | 83085 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 100
- Type of wastewater (abwasserart_de):
with sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241793
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): tileable cover plate
- Length (laenge): 642 mm
- Width (breite): 590 mm
