Hybrid lifting station Ecolift L

Duo, FKA, SPF 1350-S3

22003
22003
PDF product data sheet

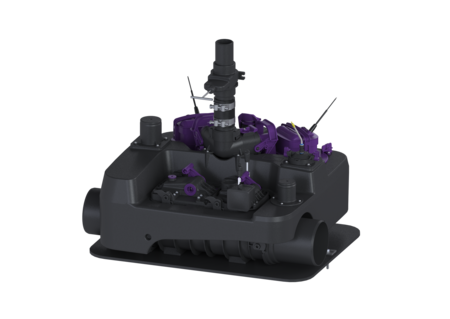

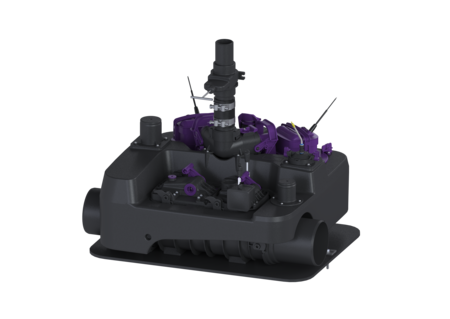

KESSEL Hybrid lifting station Ecolift L, wastewater with sewage, exposed drainage pipe, outlet DN 150 mm, with 2 submersible SPF 1350 pumps, operating mode S3 - 50 %, level measurement pneumatic

  • Hybrid function: uses the natural fall to the sewer - pump is only used in case of backwater
  • Quiet and energy-saving
  • Double safety due to backwater flap and pressure loop
Item no. 22003
GTIN 4026092105818
Price group 20

    Hybrid lifting station Ecolift L Duo, FKA, SPF 1350-S3
    The alternative to a sewage lifting station. For faecal wastewater, bottom section made of PE-LD, for installation in an exposed drainage pipe, drainage via the gravity pipe to the sewer. Lifting function with one pump or two pumps, only in the event of backwater, the backwater flap can be closed by a motor, with an additional hinged flap. Drainage during the backwater phase takes place via an on-site pressure pipe that can be connected above the backwater level. Including a backflow preventer and shut-off valve for the pressure pipe. Including penetration seals DN 70 for the on-site ventilation pipe Polymer closure system for the drainage pipe for safe closure of the drainage pipe in the event of backwater. Consisting of a hinged flap including an emergency closure (for manual locking if required) and an electrically powered closure mechanism including a probe protected against wire breakage for the detection of backwater. Control unit with an integrated self-diagnosis system (SDS), display of the operating states and integrated battery back-up for alarm signals. User-friendly menu guidance in a multi-line display. With a self-diagnosis system (SDS) and reminder when maintenance is due. Display of the current measured values. Simple adjustment of the function-related parameters, including the operating hour counter and potential-free contact. Optional relaying of alarm and collective error messages via the GSM interface. Control unit with a full text display in six languages. General characteristics Colour: black Type of wastewater: with sewage Installation situation: exposed drainage pipe Approval: Z-53.2-493 Type de protection moteur: IP 68 ATEX: no Dimensions Net weight: 49,59 kg Gross weight: 75,31 kg Length: 700 mm Width: 850 mm Height: 736 mm Packaging dimension: length: 855 mm Packaging dimension: width: 775 mm Packaging dimension: height: 640 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Outlet nominal size (DN): 150 mm Pumping volume: 20 l Wastewater contents Total volume: 66 l Pumping device Pump: SPF 1350 Number of pumps: 2 Rated current: 6 A Protection class (pump): IP 68 (3m/48h) Max. pumping capacity: 26 m³/h Max. pumping height: 10 m Power P1: 1,35 kW Power P2: 0,86 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Length of mains cable for flap motor: 5 m Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1 m Rated current: 6 A Type of fuse required (electrical protection): C 16 A
