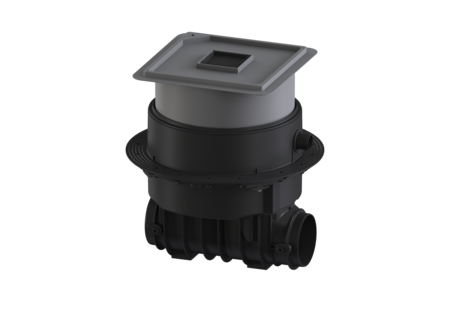

Shell Kit
for Ecolift,w/o socket, tileable
KESSEL Shell Kit for Ecolift,w/o socket, tileable, wastewater with sewage, floor slab installation, with submersible pumps
| Item no. | 21000X-RBK |
|---|---|
| GTIN | 4026092097120 |
| Price group | 20 |
Shell Kit for Ecolift,w/o socket, tileable
KESSEL shell kit for Ecolift, without sockets, tileable Shell kit consisting of a drain body, upper section and flange for joint sealing. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating an Ecolift backwater lifting station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-487 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Odour trap: Multistop Dimensions Net weight: 25 kg Gross weight: 30,5 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 590 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm Socket version: optional Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Approval |
- Type of cover (abdeckungsart): tileable cover plate
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
with sewage
