Lifting stati. Aqualift F XL 300l
Duo, SPF 1500-S3,Cast-iron shut-off val.

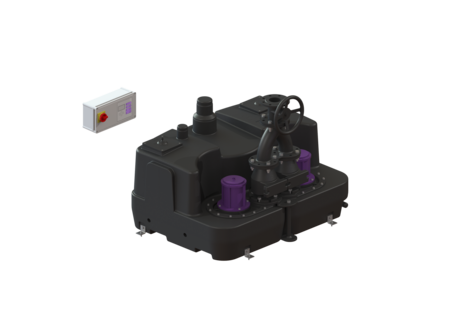

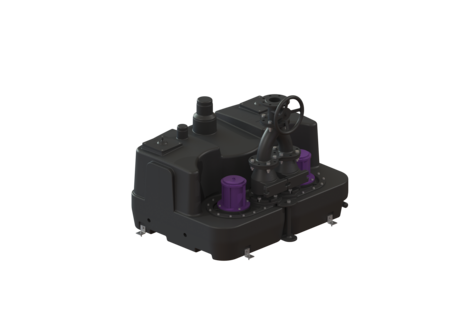

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 400 V, operating mode S3 - 50 %, with 2 submersible SPF 1500-S3 pumps, alarm generator with Immersion pipe, shut-off valve Shut-off valve made of cast iron, Backflow preventer integrated, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 11034 |
|---|---|
| GTIN | 4026092057018 |
| Price group | 50 |
Lifting stati. Aqualift F XL 300l Duo, SPF 1500-S3,Cast-iron shut-off val.

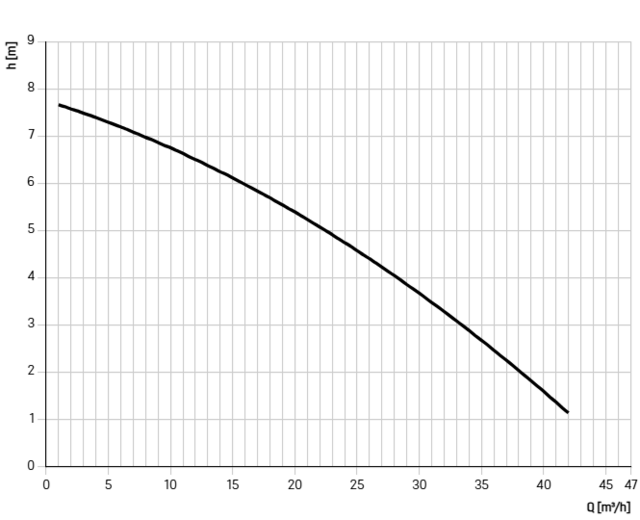

The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Retaining bracket for the lift protection: yes Sound absorption mat: yes Installation: Dry installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Duo Dimensions Net weight: 196,52 kg Gross weight: 216,52 kg Length: 1260 mm Width: 760 mm Height: 806 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 609 mm Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 175 l Tank volume: 300 l Pumping device Pump: SPF 1500-S3 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal
