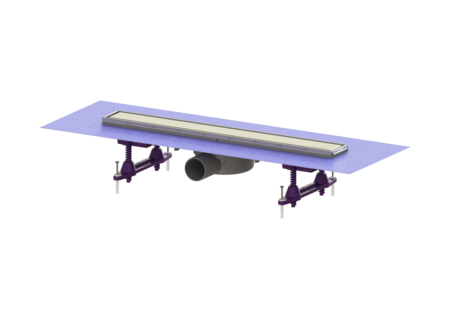

Shower channel Linearis Compact
L: 550 mm, DN 50, WaD, 304 SST cov., K 3
KESSEL Shower channel Linearis Compact, length 550 mm, nominal size (DN) 50, drainage by Linear drain, type of cover Stainless steel cover, waterproofing layer upper section by Factory-fitted sealing collar (WaD) according to DIN 18534
- Individual design with reversible stainless steel insert
- Low installation depth
- Highest fire protection standards
| Item no. | 45600.61M |
|---|---|
| GTIN | 4026092078891 |
| Price group | 10 |
Shower channel Linearis Compact L: 550 mm, DN 50, WaD, 304 SST cov., K 3
The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap. Variant System: 125 Seepage opening: prepared Waterproofing layer on the upper section: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) with 20 mm backwater: 0,7 Discharge rate (l/s) without backwater: 0,5 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Net weight: 1,52 kg Gross weight: 2,08 kg Outer dimension, length: 615 mm Installation depth: 80 - 140 mm Width: 191 mm Height: 80 mm Packaging dimension: length: 640 mm Packaging dimension: width: 200 mm Packaging dimension: height: 95 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Brushed SST Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 550 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Odour trap Linearis, sealing water height 22 mm | 48603 | Show |
 | Stainless steel insert Linearis Comp., L: 550 mm, til 08/2015 | 680259 | Show |
 | Stainless steel insert Linearis Comp., L: 550 mm, fr. 09/2015 | 680483 | Show |
 | Stand set 2 stands incl. rubber insert | 680669 | Show |
 | Waterproofing membrane for Linearis Compact 300 - 1150 mm | 680728 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite):
50
- Material of drain body (material_grundkoerper):
ABS
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Rim length (rahmen_laenge): 550 mm
