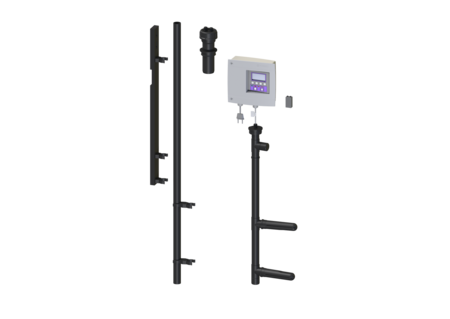

Layer thickness measuring device
SonicControl, for grease separators
SonicControl layer thickness measuring device for grease separators free-standing installation and underground installation with ultrasonic sensor for centimetre-accurate monitoring and reporting of the grease layer thickness. With mains connection, battery backup and optional connection possibility for a remote signal generator. Incl. Mounting set for easy installation and maintenance provided by the customer. Cable (for sensor) can be extended up to 60 m provided by the customer. Control unit with visual and audible alarm, electronic log book designed for 12 months, log book can be read out via serial interface.
| Item no. | 917821 |
|---|---|
| GTIN | 4026092042076 |
| Price group | 60 |
Layer thickness measuring device SonicControl, for grease separators
SonicControl layer thickness measuring device for grease separators free-standing installation and underground installation with ultrasonic sensor for centimetre-accurate monitoring and reporting of the grease layer thickness. With mains connection, battery backup and optional connection possibility for a remote signal generator. Incl. Mounting set for easy installation and maintenance provided by the customer. Cable (for sensor) can be extended up to 60 m provided by the customer. Control unit with visual and audible alarm, electronic log book designed for 12 months, log book can be read out via serial interface. General characteristics Cable length: 10 m Dimensions Net weight: 4,5 kg Gross weight: 4,8 kg Packaging dimension: length: 1200 mm Packaging dimension: width: 380 mm Packaging dimension: height: 90 mm Pumping device Connection type: Schuko (earthed contact) 2-pin Control Protection class control unit: IP 54 Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates |
