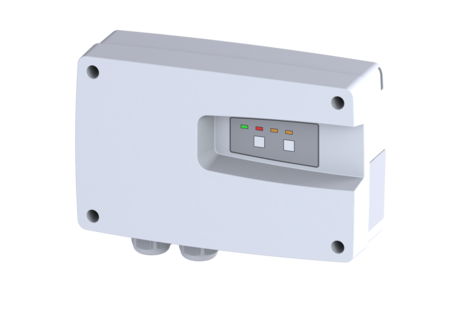

Control unit Connect
Mono, 400 V
User-friendly Connect control unit with optical and acoustic warning
| Item no. | 681093 |
|---|---|
| GTIN | 4026092102381 |
| Price group | 90 |
Control unit Connect Mono, 400 V
User-friendly Connect control unit with optical and acoustic warning General characteristics ATEX: no Dimensions Net weight: 0,68 kg Gross weight: 1,2 kg Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Control Control unit: Connect Motor protection switch: yes Standby power: 2 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Rated current: 2,5 - 6 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Declaration of Conformity |
|---|
