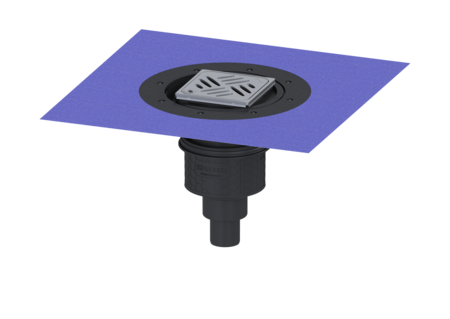

Practicus floor/roof drain
DN 50, vert., Waterpr layer, Des grate
KESSEL Practicus floor/roof drain, cover length 120 mm, type of waterproofing Waterproofing layer, socket vertical, nominal size (DN) 50, odour trap included, drainage by Point drain, type of cover Design cover, design cover Kessel
- Hygiene: hygienic, absolutely corrosion-free and durable material
- Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
- Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. | 45250.53 |
---|---|
GTIN | 4026092033838 |
Price group | 10 |
Practicus floor/roof drain DN 50, vert., Waterpr layer, Des grate
The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2,2 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Vertical adjustment: 10 - 23 mm Net weight: 2,41 kg Gross weight: 3,2 kg Type of height adjustability: vertically adjustable upper section Length: 135 mm Width: 135 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show | |
Extension section H: 140 mm, with glued flange | 48403 | Show | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Show | |
Extension section H: 120 mm, with glued flange | 48900 | Show | |
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Show | |
Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Show |
Title | Item no. | ||
---|---|---|---|
Odour trap for Practicus, Ecoguss, Ferrofix | 27169 | Show | |
Practicus drain body DN 50, Vertical outlet | 45250 | Show | |
Waterproofing membrane for joint sealing, liquid | 48651 | Show | |
Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48904 | Show | |
Design cover Oval, Lock & Lift | 680225 | Show | |
Design cover KESSEL, Lock & Lift | 680226 | Show | |
Design cover Cross, Lock & Lift | 680235 | Show | |
Design cover Parade, Lock & Lift | 680236 | Show | |
Design cover Festival, Lock & Lift | 680237 | Show | |
Design cover Spot, Lock & Lift | 680238 | Show | |
Design cover Slot, Lock & Lift | 680239 | Show | |
Design cover Sticks, Lock & Lift | 680240 | Show | |
Release key for Lock & Lift | 680702 | Show |
Manuals | |
---|---|
CAD Data | |
Approval | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): PP
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): vertical
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
