Pump system Aquapump Retrofit
Tronic, STZ1300-S1, level sensor
KESSEL Pump system Aquapump Retrofit Tronic, wastewater with sewage, installation in on-site collecting tank, with a submersible STZ 1300 pump, pressure pipe connection horizontal, 400 V, pressure pipe connection DN 50, Backflow preventer integrated
Item no. | STZ1300-M |
---|---|
Price group | 60 |
Pump system Aquapump Retrofit Tronic, STZ1300-S1, level sensor

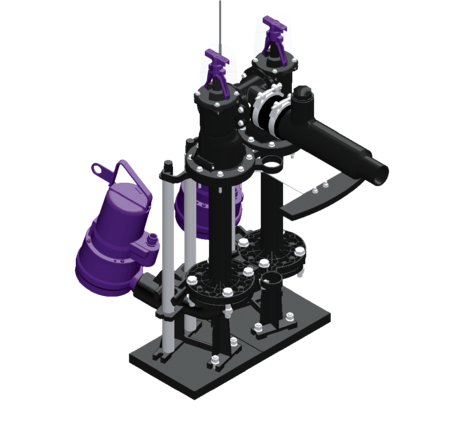

The pump system for installation in existing collection tanks for wastewater with sewage is equipped with a submersible pump, a backflow preventer and a shut-off valve. The polymer profile (PE) is used to mount and fix the pumping station. Quick-release closures enable easy removal of the pumps. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Required minimum diameter of the on-site chamber: 1000 mm Variant Type of system: Single unit Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: with sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Tronic Dimensions Net weight: 147 kg Gross weight: 170 kg Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Pumping device Pump: STZ 1300 Number of pumps: 1 Connection type: coded plug Rated current: 2,5 A Length of mains cable for pump: 10 m Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 21 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 0,9 kW Operating mode: S1 Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,5 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
- Control unit (schaltgeraet): Comfort
- Type of wastewater (abwasserart_de): with sewage
- Alarm sensor (alarmgeber): Level sensor
- Pump (pumpe): STZ 1300
- Impeller type (laufrad_typ): Macerator
